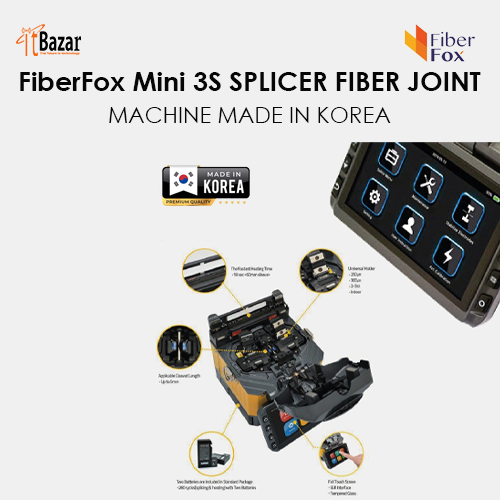

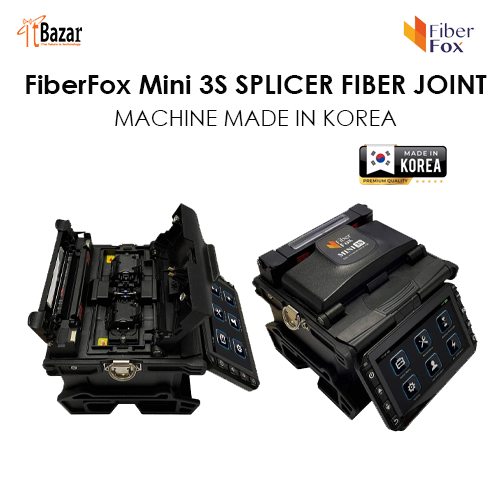

FiberFox Mini 3S SPLICER FIBER JOINT MACHINE MADE IN KOREA
Inhouse product
FiberFox Mini 3S SPLICER FIBER JOINT MACHINE MADE IN KOREA
FiberFox Mini 3S Active V-Groove Clade Splicer Machine
The FiberFox Mini 3S Active V-Groov Clade Splicer Machine is an Active Alignment (DAA: Digitalized Active Alignment) splicer machine. The machine has an average loss of SM(0.03dB) / MM(0.02dB) / DS(0.05dB) / NZDS(0.05dB) with a splicing time of SM Mode: 8 Sec. It has 139 (Pre-set: 11 / User set-up: 128) splicing modes with an attenuation range of 0.1 ~ 20 dB. The fiber types that can be used in this machine are SM(ITU-T G652 & G.657)/ MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) with a diameter coating of 100 to 3,000um. The average heating time is 18 seconds and there are 37 (Pre-set: 5 / User set-up: 32) heating modes that are available.
The machine has a Color 4.3″ LCD monitor, with Touch Screen (Tempered Glass) display that allows you to see all the functions and features. The battery used here is Li-ion 11.1V 3000mAh, 200 cycles (Splicing & Heating) with a power supply ability of AC 100-240V input or DC 12.6V 1.8A.
কোরিয়ার তৈরী FiberFox Splice মেশিন
দেশের যেকোন জায়গায় কুরিয়ার ডেলিভারি
Reviews & Ratings
Product Queries (0)
Login Or Registerto submit your questions to seller
Other Questions
No none asked to seller yet
Frequently Brought Products
Fiber Closures Horizontal Type 48 Port
Fiber Optic Drop Cable Stripper

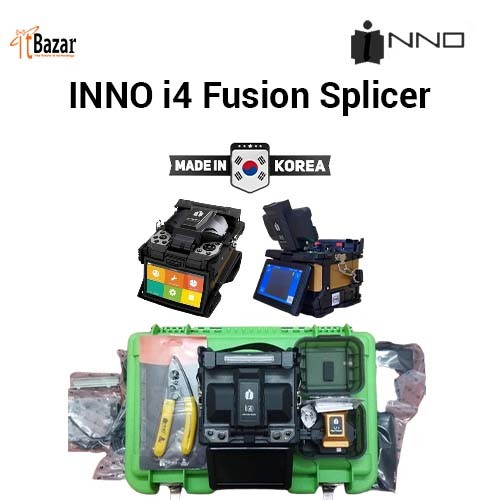

INNO Splicer i4 Fusion Splicer
Mikrotik RB3011UiAS-RM

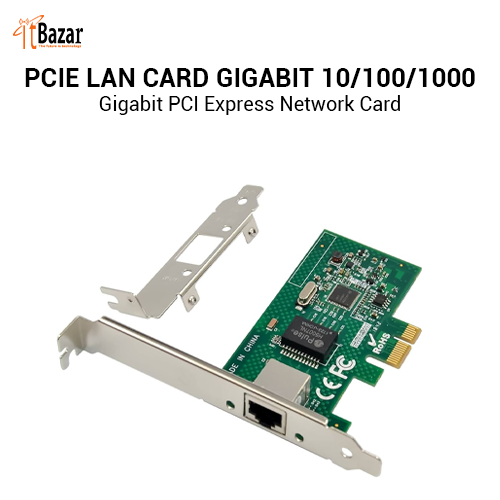

PCI LAN CARD 1G PORT 10/100/1000
