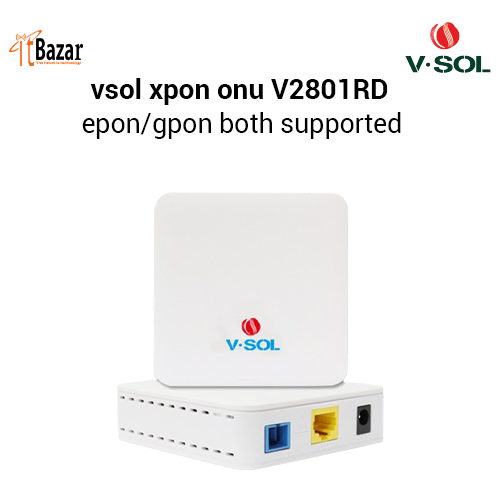

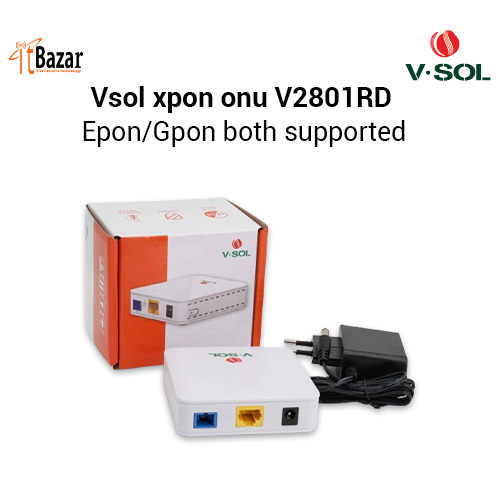

Vsol xpon ONU V2801rd
Epon/Gpon both supported
ভিসল এক্সপন অনু। ইপন ,জীপন বোথ সাপোর্টেড
Dimension 82mm×82mm×25mm(L×W×H)
Net weight 85g
Operating condition Operating Temp: -10 ~ +55°C
Operating Humidity: 5 ~ 95%(non-condensed)
Storing condition Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensed)
Power adapter DC 12V, 0.5A, external AC-DC power adaptor
Power supply ≤4W
Interface 1GE
Indicators SYS, LINK/ACT, REG
○ Interface parameter
PON interface
1XPON port(EPON PX20+ and GPON Class B+)
SC single mode, SC/UPC connector
TX optical power: 0～+4dBm
RX sensitivity: -27dBm
Overload optical power: -3dBm(EPON) or -8dBm(GPON)
Transmission distance: 20KM
Wavelength: TX 1310nm, RX1490nm
LAN interface 1*GE, Auto-negotiation RJ45 connectors
○ Function Data
XPON Mode Dual mode,Auto-access to EPON/GPON OLT
Uplink Mode Bridging and Routing Mode
Abnormal protection Detecting Rogue ONU, Hardware Dying Gasp
Firewall DDOS, Filtering Based on ACL/MAC/URL
○ Product Feature
Basic
Support MPCP discover®ister
Support authentication Mac/Loid/Mac+Loid
Support Triple Churning
Support DBA bandwidth
Support auto-detecting, auto-configuration, and auto firmware upgrade
Support SN/Psw/Loid/Loid+Psw authentication
Alarm
Support Dying Gasp
Support Port Loop Detect
Support Eth Port Los
LAN
Support Port rate limiting
Support Loop detection
Support Flow control
Support Storm control
VLAN
Support VLAN tag mode
Support VLAN transparent mode
Support VLAN trunk mode(max 8 vlans)
Support VLAN 1:1 translation mode(≤8 vlans)
Auto VLAN detection
Multicast
Support IGMP v1/v2/Snooping
Max Multicast vlan 8
Max Multicast Group 64
QOS
Support 4 queues
Support SP and WRR
Support 802.1P
L3
Support IPv4
Support DHCP/PPPOE/Static IP
Support Static route
Support NAT
Management
Support CTC OAM 2.0 and 2.1
Support ITUT984.x OMCI
Support WEB
Support TELNET
Support CLI
