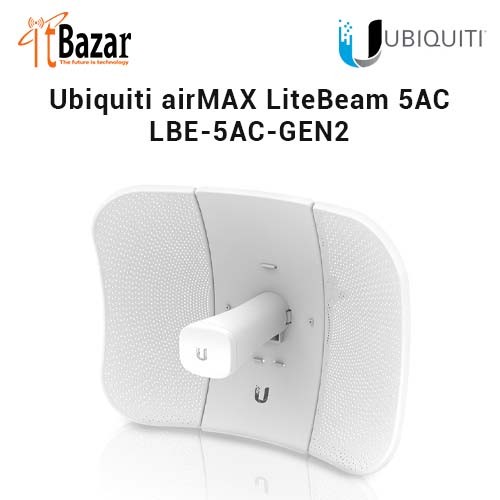

UBIQUITI LiteBeam AC GEN2 LBE-5AC-Gen2 AIRMAX LITE BEAM RADIO
Inhouse product
UBIQUITI LiteBeam AC GEN2 LBE-5AC-Gen2 AIRMAX LITE BEAM RADIO
উবিকুইটি লাইট বিম রেডিও লিংক। পয়েন্ট টু পয়েন্ট
Overview Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management. Improved Noise Immunity The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Innovative Design Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.
Specifications
LBE-5AC-Gen2

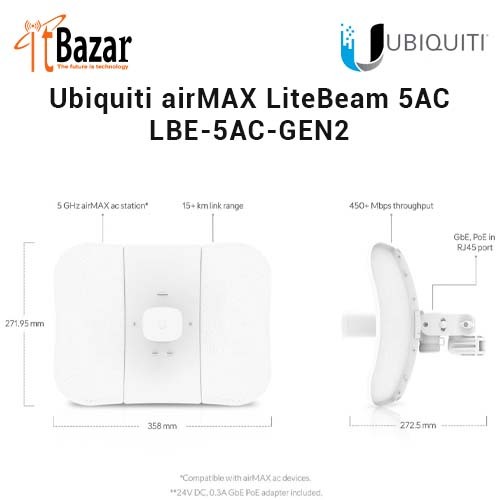

Dimensions 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73")
Weight
Without Mount
With Mount
800 g (1.76 lb)
980 g (2.16 lb)
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption 7W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 24V ± 10%
Gain 23 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB DDR2
LEDs Power, Ethernet
Channel Sizes PtP Mode PtMP Mode
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz
Enclosure Characteristics Reflector (SGCC 0.6T) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
