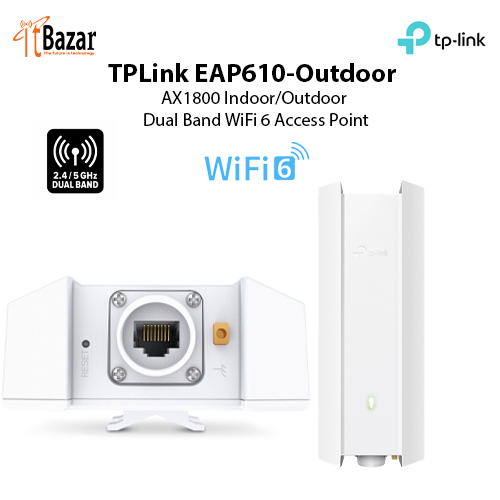

TPLink EAP610 AX1800 Indoor/Outdoor WiFi 6 Access Point

Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology†

Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO

Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure

Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment**

Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

HARDWARE FEATURES

Interface 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

Button Reset

Power Supply • 802.3at PoE

• 48V/0.5A Passive PoE (PoE Adapter Included)

Power Consumption • EU: 12.5W (802.3at PoE or Passive PoE)

• US: 14.7W (802.3at PoE or Passive PoE)

Dimensions ( W x D x H ) • 280.4×106.5×56.8 mm (without antenna & mounting kit)

Antenna • 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

Weatherproof Enclosure IP67

Mounting Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Client Capacity 250+△

Concurrent Clients 250+△

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz, 5 GHz

Signal Rate • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)

• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)

• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmit Power • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)

• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

Wireless Functions • 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS (WMM)

• MU-MIMO

• Omada Mesh**

• Seamless Roaming**

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

Wireless Security • Captive Portal Authentication**

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

Omada App Yes

Centralized Management • Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Cloud Access Yes, through

• Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)

• OC300

• OC200

• Omada Software Controller

Email Alerts Yes

Management MAC Access Control Yes

SNMP v1, v2c

System Logging Local/Remote Syslog Yes

SSH Yes

Web-based Management Yes

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0).

OTHERS

Certification CE, FCC, RoHS

Package Contents • Access Point EAP610-Outdoor

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Waterproof Kits

• Waterproof Antenna

• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment • Operating Temperature: -30–70 ℃ (-22–158 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
