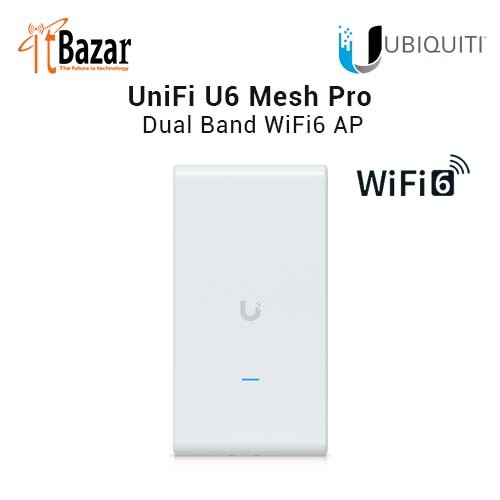

Ubiquiti UniFi U6 Mesh Pro
Inhouse product
Ubiquiti UniFi U6 Mesh Pro

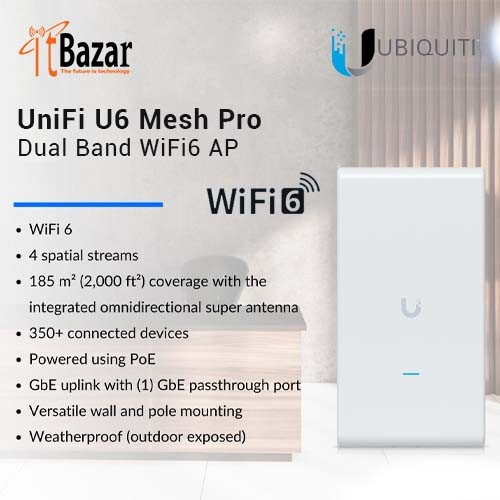

Ubiquiti has recently debuted the new UniFi U6 Mesh Pro access point, which is essentially an updated AC Mesh Pro - a device which was launched back in 2016. The hardware has the same plastic slab design, with two Ethernet ports on the bottom, one for PoE in and one for a data passthrough, but it doesn't have PoE passthrough.
Zoom in
Mechanical
Dimensions 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight 819 g (1.8 lb)
Enclosure material UV-stabilized polycarbonate
Mount material Aluminum alloy, steel
Pole mount diameter 1~2.5" on pipe outer diameter
Weatherproofing IPX6
Hardware
Networking interface (2) GbE RJ45 ports
Management interface Ethernet
WiFi
Power method PoE
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (Included)
Supported voltage range 42.5—57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
27 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU MIMO)
2 x 2 (DL/UL MU-MIMO)
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps (BW40)
2.4 Gbps (BW160)
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
8 dBi
8 dBi
–
LEDs White/blue
Button Factory reset
Mounting Wall, pole (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network Version 8.1.127 and later
