Tenda TX3000 Pro AX3000 Dual Band 3000Mbps Gigabit WiFi 6 Router

Specifications

Brand Tenda

Model TX3000PRO

Wi-Fi Technology Wi-Fi 6 (802.11ax)

Concurrent Rate Up to 2976Mbps (5GHz: 2402Mbps, 2.4GHz: 574Mbps)

CPU 12nm process dual-core 1.3GHz

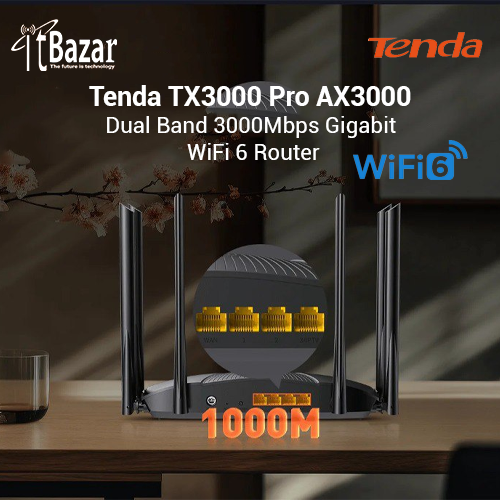

Interfaces 1*10/100/1000Mbps WAN port

  3*10/100/1000Mbps LAN ports

Antennas 6*6dBi external antennas

Buttons 1*WPS/Mesh button

  1*Reset button

Power Input: AC 100-240V~50/60Hz

  Output: DC 12V⎓1A

LED Indicator 1* LED

Dimensions (LWH) 272.44162.8543.71 mm

Wireless Standard IEEE 802.11ax/ac/n/a 5 GHz

  IEEE 802.11ax/n/b/g 2.4 GHz

Data Rate 5 GHz: 2402 Mbps (802.11ax, HE160)

  2.4 GHz: 574 Mbps (802.11ax)

Frequency CE:

  2.4G: 2412-2472MHz (CH1-CH13)

  5G: 5150-5350MHz (CH36-CH64)

  FCC:

  2.4G: 2412-2462MHz (CH1-CH11)

  5G: 5150-5350MHz (CH36-CH64)

  5725-5850MHz (CH149-CH165)

Transmission Power CE:

  <20 dBm (2.4 GHz)

  <23 dBm (5 GHz)

  FCC:

  <30 dBm (2.4 GHz)

  <30 dBm (5 GHz)

Basic Features SSID broadcasting and hiding

  MU-MIMO

  Beamforming signal directional transmission technology

  160MHz

  OFDMA

  1024-QAM

Wireless Security WPA2-PSK

  WPA3-SAE/WPA2-PSK

  Wireless Security: Enable/Disable

  WPS (WiFi Protected Set-up) fast encryption

Internet Connection Type PPPoE, Dynamic IP, Static IP

  PPPoE (Russia), PPTP (Russia), L2TP (Russia)

  Unify, Maxis, Maxis-special, Celcom, Digi

Network Protocol IPv4 & IPv6

Operating Mode Router Mode

  AP Mode

  Universal Repeater Mode (Client+AP, WISP)

Parental Control Client Filter

  URL Filter

  Time Limit

DHCP DHCP Server

  DHCP Client List

  DHCP Static IP Address Reservation and Allocation

Virtual Server Port Forwarding

  DMZ Host

  UPnP

Firewall ICMP Flood Attack Defense

  TCP Flood Attack Defense

  UDP Flood Attack Defense

  Block Ping From WAN

DDNS DynDNS, no-ip, oray, 88ip

VPN IPSec Transparent Transmission

  PPTP Transparent Transmission

  L2TP Transparent Transmission

  PPTP VPN Server

  PPTP VPN Client

  L2TP VPN Client

Special Features Wi-Fi+ (Mesh System)

  Smart Diagnosis

  IPTV

  IPv6

  Smart LED on/off

Other Functions Support App and web management

  Bandwidth Control

  Guest Network

  MAC Address Clone

  Supports black list and white list

  Unify 2.4 GHz & 5 GHz

  Static Routing

  Remote Web Management

  Backup & Restore configurations

  Firmware upgrade online

Temperature Operating Temperature: 0℃~40℃

  Storage Temperature: -40℃~70℃

Humidity Operating Humidity: 10%~90% RH non-condensing

  Storage Humidity: 5%~90% RH non-condensing

Certification CE, FCC, RoHS

Package Contents Wi-Fi Router *1

  RJ45 Ethernet Cable *1

  Power Adapter *1

  Quick Installation Guide *1

Warranty 01-year official warranty
