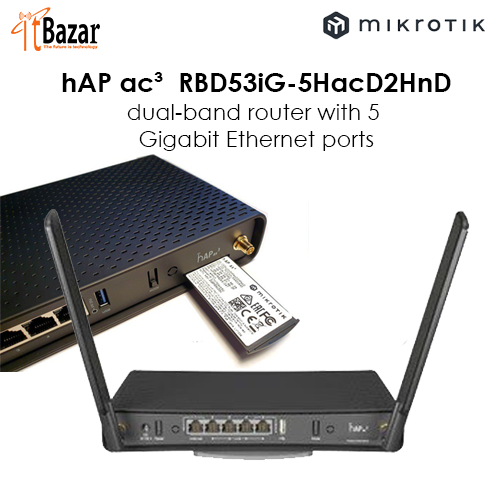

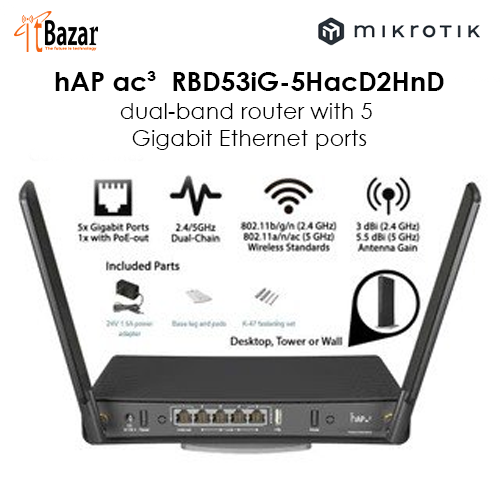

Mikrotik hAP ac³  RBD53iG-5HacD2HnD Dual Band Router (মাইক্রোটিক হ্যাপ এসি৩)

A wireless dual-band router with 5 Gigabit Ethernet ports and external high gain antennas for more coverage

Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point that has all the features you might need for years to come.

Is your old router struggling to reach every corner of your home? Well, forget about that! We have included external high gain wireless antennas with outstanding coverage. Only strong and stable wireless connection in every room from now on!

With 5 Gigabit Ethernet ports, 256 MB of RAM and quad-core CPU, hAP ac³ can satisfy even the biggest and most demanding households. With PoE support, it can power or be powered by other devices. There is a 128 MB NAND and a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Specifications

Details

Product code RBD53iG-5HacD2HnD

Architecture ARM 32bit

CPU IPQ-4019

CPU core count 4

CPU nominal frequency 716 MHz

Switch chip model IPQ-4019

Dimensions 251 x 129 x 39 mm

RouterOS license 4

Operating System os

Size of RAM 256 MB

Storage size 128 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C

IPsec hardware acceleration Yes

Suggested price $109.00

Wireless capabilities

Details

Wireless 2.4 GHz Max data rate 300 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 3

Wireless 2.4 GHz chip model IPQ-4019

Wireless 2.4 GHz generation Wi-Fi 4

Wireless 5 GHz Max data rate 867 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac

Antenna gain dBi for 5 GHz 5.5

Wireless 5 GHz chip model IPQ-4019

Wireless 5 GHz generation Wi-Fi 5

WiFi speed AC1200

Ethernet

Details

10/100/1000 Ethernet ports 5

Number of 1G Ethernet ports with PoE-out 1

Peripherals

Details

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-28 V

Max power consumption 30 W

Max power consumption without attachments 12 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 18-28 V

PoE-out

Details

PoE-out ports Ether5

PoE out Passive PoE

Max out per port output (input 18-30 V) 0.5 A

Max total out (A) 0.5 A

Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

IP IP20

Other

Details

Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s 25 -100

11MBit/s 25 -94

6MBit/s 26 -96

54MBit/s 23 -78

MCS0 26 -96

MCS7 22 -73

5 GHz Transmit (dBm) Receive Sensitivity

6MBit/s 26 -96

54MBit/s 22 -80

MCS0 26 -96

MCS7 21 -75

MCS9 19 -70
