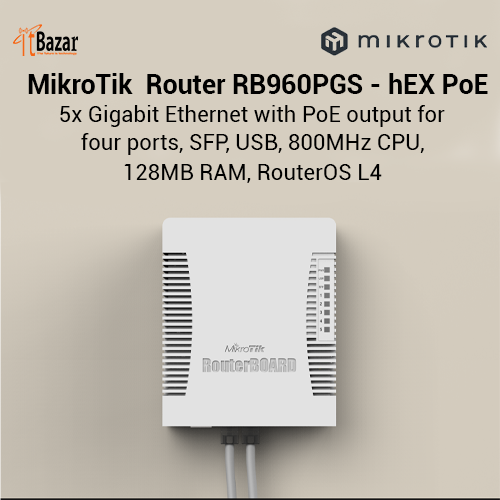

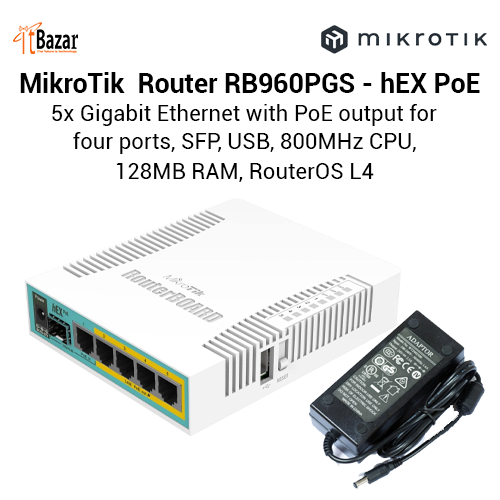

MikroTik  RB960PGS - hEX PoE

5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4

hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.

It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.

It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.

Specifications

Details

Product code RB960PGS

Architecture MIPSBE

CPU QCA9557

CPU core count 1

CPU nominal frequency 800 MHz

Switch chip model QCA8337

RouterOS license 4

Operating System os

Size of RAM 128 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 60°C

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-57 V

Max power consumption 54 W

Max power consumption without attachments 6 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 12-57 V

PoE-out

Details

PoE-out ports Ether2-Ether5

PoE out 802.3af/at

Max out per port output (input 18-30 V) 1 A

Max out per port output (input 30-57 V) 450 mA

Max total out (A) 2 A

Ethernet

Details

10/100/1000 Ethernet ports 5

Fiber

Details

SFP ports 1

Peripherals

Details

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1

Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes

Beeper Yes

Certification & Approvals

Details

Certification CE, EAC, ROHS

IP IP20
