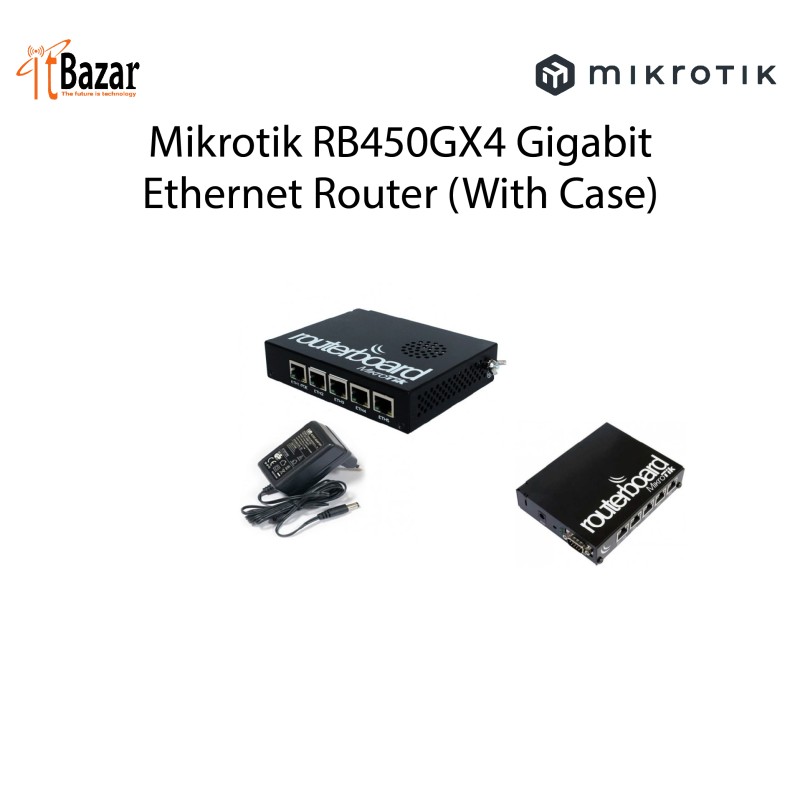

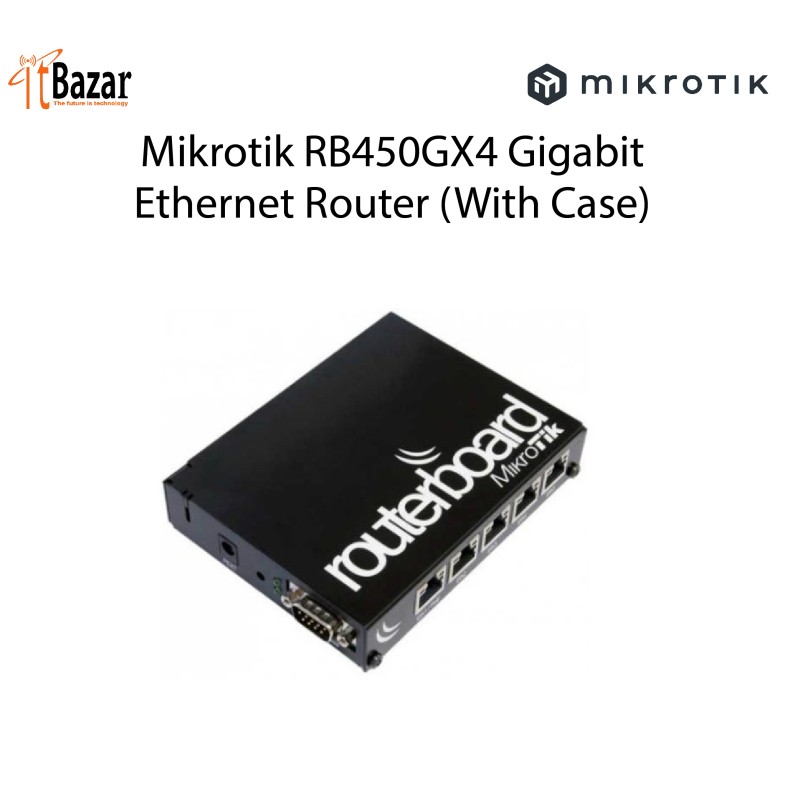

Mikrotik RouterBoard 450Gx4
Inhouse product
Mikrotik RouterBoard 450Gx4
About this item
The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot
It supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5
It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures
The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption
Dimensions: 90 x 115 mm, Size of RAM: 1 GB, Storage size: 512 MB, PoE in: 802.3af/at, PoE-out ports: Ether5, PoE out: Passive PoE, PCB temperature and Voltage monitor
Specifications
Details
Product code RB450Gx4
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 90 x 116 mm
RouterOS license 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Powering
Details
Number of DC inputs 3 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 4 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V
PoE-out
Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 500 mA
Max out per port output (input 30-57 V) 500 mA
Max total out (A) 500 mA
Ethernet
Details
10/100/1000 Ethernet ports 5
Peripherals
Details
Memory card type microSD
Serial console port RS232
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
