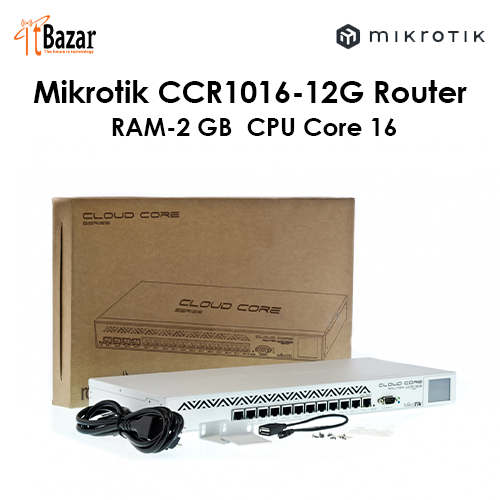

Mikrotik CCR1016-12G Cloud Core Router
Inhouse product
Mikrotik CCR1016-12G Cloud Core Router
1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6, Dual PSU
Discontinued
CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.
The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy!
Specifications
Details
Product code CCR1016-12G
Architecture TILE
CPU TLR4-01680
CPU core count 16
CPU nominal frequency 1.2 GHz
Dimensions 443 x 193 x 44 mm
RouterOS license 6
Operating System os
Size of RAM 2 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $705.00
Powering
Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 42 W
Max power consumption without attachments 37 W
Cooling type 2 fans
Ethernet
Details
10/100/1000 Ethernet ports 12
Peripherals
Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
Reviews & Ratings
Product Queries (0)
Login Or Registerto submit your questions to seller
Other Questions
No none asked to seller yet
Frequently Brought Products
Mikrotik RBPOE injector 10/100
Mikrotik Router CCR1009-7G-1C-1S+

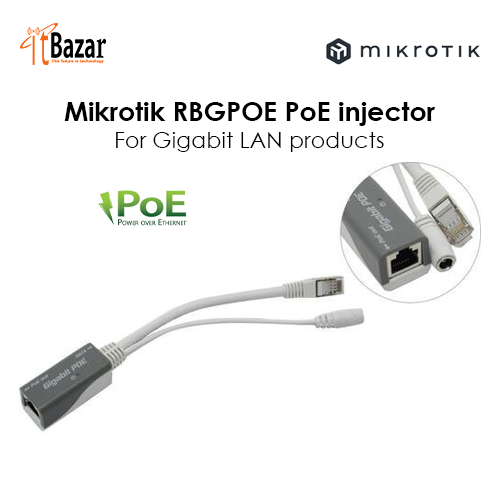

Mikrotik RBGPOE PoE Injector Gigabit
