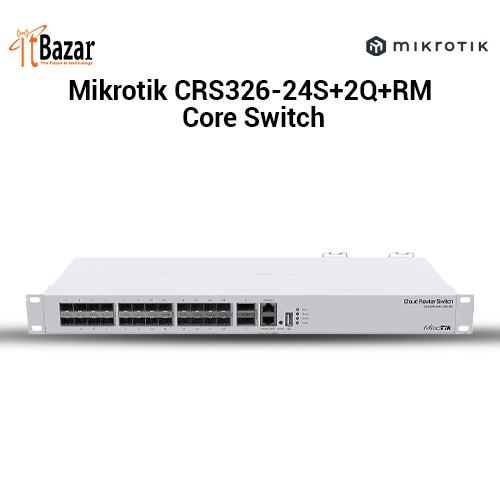

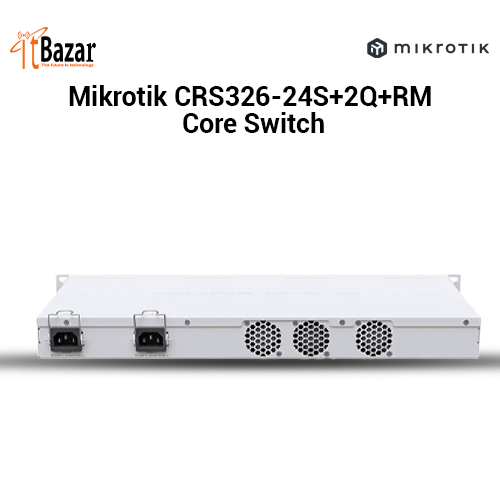

Mikrotik CRS326-24S+2Q+RM Core Switch
Our fastest switch for the most demanding setups
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.
CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
Specifications
Details
Product code CRS326-24S+2Q+RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model 98DX8332
Dimensions 443 x 200 x 44 mm
RouterOS license 5
Operating System RouterOS v7 / SwitchOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
Powering
Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 47-63
Max power consumption 69 W
Max power consumption without attachments 42 W
Cooling type 3 fans
Ethernet
Details
10/100 Ethernet ports 1
Fiber
Details
SFP+ ports 24
Number of 40G QSFP+ ports 2
Peripherals
Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
