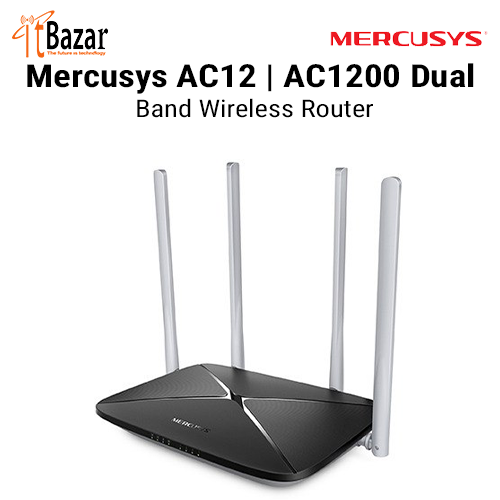

Mercusys AC1200 Dual Band Wireless Router
Supports 802.11ac standard - the next generation of Wi-Fi
Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi
4 External Antennas Greatly Expand Wireless Coverage
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
Easy installation - intuitive webpage guides you through the setup process in minutes
IPTV and IPv6 Supported
Wireless
Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency
2.4 - 2.5GHz, 5.15 - 5.25GHz
WiFi Speeds
300Mbps at 2.4GHz, 867Mbps at 5GHz
Reception Sensitivity
5GHz
• 11a 6M: -92dBm
• 11a 54M: -75dBm
• 11ac 20M MCS8: -70dBm
• 11ac 40M MCS9: -64dBm
• 11ac 80M MCS9: -60dBm
2.4GHz
• 11g 6M: -95dBm
• 11g 54M: -77dBm
• 11n 20M MCS7: -74dBm
• 11n 40M MCS7: -71dBm
Working Modes
Router Mode
Access Point Mode
Range Extender Mode
Wireless Security
WPA / WPA2-Personal, WPA2 / WPA3-Personal
Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics
Hardware
Dimensions
222 x 140 x 32 mm
Button
WPS/Reset Button
External Power Supply
9V/0.85A
Antenna Type
4 * 5dBi

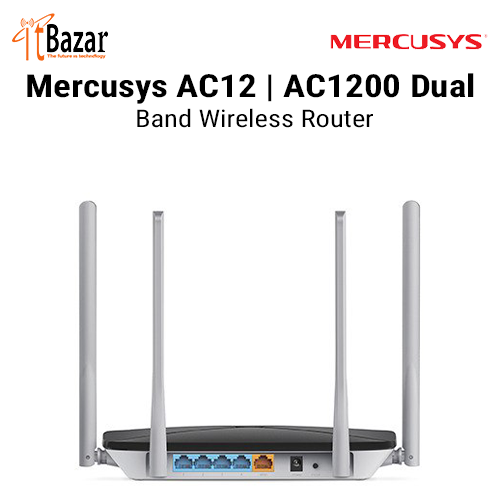

Ethernet Ports
3*10/100Mbps LAN Ports
1*10/100Mbps WAN Port
Software
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control
Local Management
Remote Management
DHCP
Server
Port Forwarding
Virtual Server, UPnP, DMZ
Firewall Security
IP and MAC Address Binding
Guest Network
2.4GHz Guest Network, 5GHz Guest Network
Others
Package Contents
• AC1200 Wireless Dual Band Router (AC12)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
