TPLink Archer BE800 BE19000 Tri-Band Wi-Fi 7 Router 10G Router

Archer BE800 Hot Buys

BE19000 Tri-Band Wi-Fi 7 Router

Redefining WiFi Routers: With powerful WiFi 7 performance, lightning-fast wired connections, brand-new design, and LED screen.

Lightning-Fast 19 Gbps Tri-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and lightning-fast downloads.†‡

Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.‡

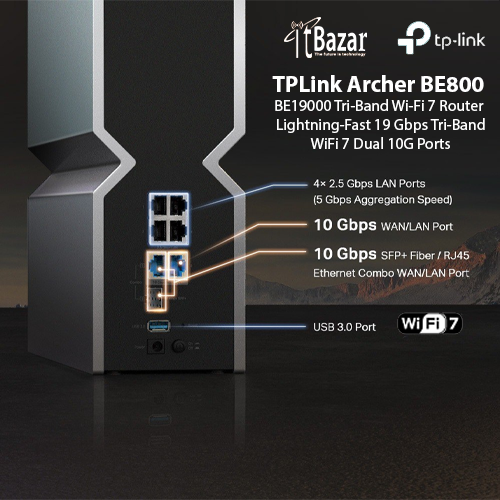

Dual 10G Ports: 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 4× 2.5 Gbps ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.

Maximized Coverage: Proprietary WiFi optimization and 8× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.

EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.

TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*

Easy and Fun to Use: Conveniently manage everything with the Tether app, and visually display the time, weather, and playful graphics

WIRELESS

WiFi Speeds BE19000

• 6 GHz: 11520 Mbps (802.11be)

• 5 GHz: 5760 Mbps (802.11be)

• 2.4 GHz: 1376 Mbps (802.11be)

WiFi Range 4 Bedroom Houses

8× Optimally Positioned Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity High, up to 100 Devices

Tri-Band

Allocate devices to different bands for optimal performance

4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

OFDMA

Simultaneously communicates with multiple clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

12 Streams

Connect your devices to more bandwidth

Working Modes • Router Mode

• Access Point Mode

Advanced Functions • Multi-Link Operation (MLO)

• 320 MHz Channel

• 4K-QAM

• Multi-RUs

• EasyMesh-Compatible

• Works with Alexa and Google Assistant

• IoT Network

SECURITY

Network Security • SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network • 1× 6 GHz Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server • OpenVPN Server

• PPTP VPN Server

• L2TP VPN Server

VPN Client • Open VPN Client

• PPTP VPN Client

• L2TP VPN Client

WiFi Encryption • WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

HARDWARE

Ethernet Ports • 1× 10 Gbps WAN/LAN

• 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN

• 4× 2.5 Gbps LAN

USB Support 1× USB 3.0

• Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

• Supported Functions:

FTP Server

Media Server

Samba Server

Buttons • WPS

• LED

• Wi-Fi

Power 15 V ⎓ 5 A

Dimensions (W x D x H) 11.9 × 10.3 × 3.8 in (302 × 262.5 × 96 mm)

LED Screen Yes

SOFTWARE

Protocols • IPv4

• IPv6

Service Kit HomeShie

EasyMesh Compatible with EasyMesh

Parental Controls HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Type • Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Quality of Service QoS by Device

Cloud Service • Auto Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding • Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV • IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP • Address Reservation

• DHCP Client List

• Server

DDNS • TP-Link

• NO-IP

• DynDNS

Management • Tether App

• Webpage

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications CE, FCC, RoHS

Environment • Operating Temperature: 0℃~40℃ (32℉ ~104℉)

• Operating Humidity: 10%~90% non-condensing

PHYSICAL

Dimensions (W×D×H) 11.9 × 10.3 × 3.8 in (302 × 262.5 × 96 mm)

Package Contents • Wi-Fi 7 Router Archer BE800

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
