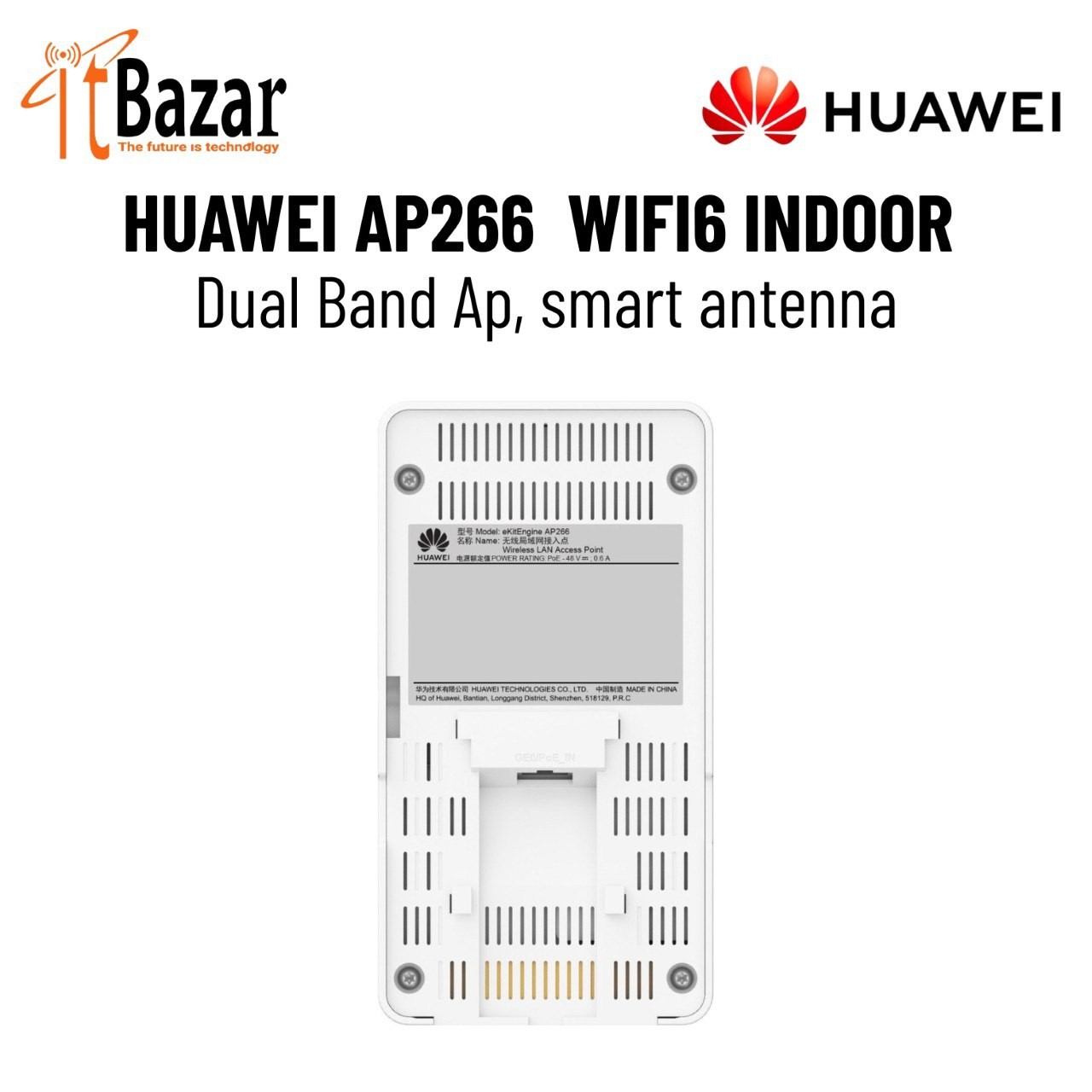

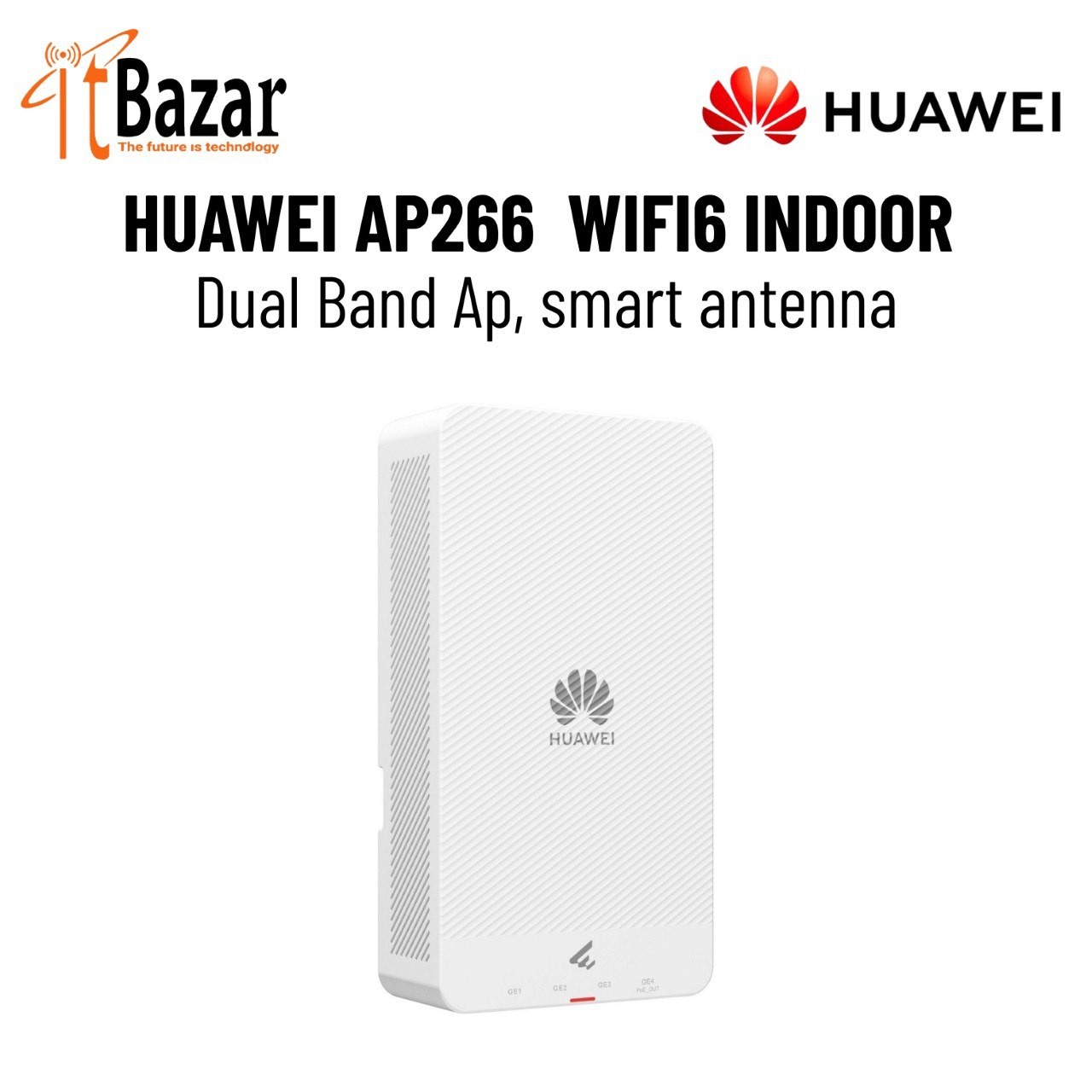

Huawei AP266  WiFi6 indoor Dual Band AP, smart antenna  হুয়াওয়েই এপি২৬৬ ওয়াইফাই৬ ডুয়াল ব্যান্ড ইন্ডোর এপি

Product description

Huawei eKitEngine AP266 is a compact indoor access point (AP) designed according to the Wi-Fi 6 (802.11ax) standard, offering high-performance and reliable wireless connectivity with speeds of up to 2.975 Gbps. The AP supports simultaneous broadcasting on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. Max. number of access users is 128, Huawei's recommendation is up to 64. With its slim design and versatile installation options, it is suitable for various installations, such as hotels, hospitals, commercial spaces, or schools.

The access point is equipped with one Gigabit uplink port and four Gigabit downlink ports, one of which supports PoE OUT with max. output power of 15 W. For using of PoE-OUT, an 802.3at/bt input is required. It can be installed on a desk, wall, ceiling, or junction box, ensuring flexible deployment in different scenarios. Thanks to its small size and easy installation, it is ideal for indoor coverage in environments where a network infrastructure needs to be built quickly and easily.

The AP266 supports management and maintenance through EasyWeb, local WAC controller, or remotely via the HUAWEI eKit App and SNC platform. This flexibility allows for easy deployment and efficient network management, simplifying the operation and maintenance of the entire system.

With MU-MIMO technology, the AP can transmit data to multiple users simultaneously, maximizing spectrum efficiency and improving performance in high-density user environments. Supporting a bandwidth of 160 MHz and 1024-QAM modulation, the AP achieves speeds of up to 575 Mbps on the 2.4 GHz frequency and 2.4 Gbps on the 5 GHz frequency, ensuring fast and reliable connectivity.

Security features include advanced authentication and encryption methods, such as WPA3, WPA2, and 802.1X, ensuring maximum data protection in wireless networks.

Technical parameters

Wireless features

Maximum modulation:1024 QAM

Wireless frequency:2.4 + 5 GHz (dual band)

WiFi standards:802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ac - wave2

MU-MIMO:Yes

Transmission speed - 5GHz [Mb/s]:2402

Transmission speed - 2.4GHz [Mb/s]:574

Tx power 2.4GHz [dBm]:23

Tx power 5GHz [dBm]:23

Security:WPA, WPA2, WPA3

2.4GHz MIMO:2 x 2

5GHz MIMO:2 x 2

Roaming:Yes

Antenna gain [dBi]:4

Connectors and Interfaces

LAN speed:(5) 10/100/1000Mbps

Gigabit LAN:Yes

Power

Power over Ethernet:802.3af, 802.3at, 802.3bt

PoE type:PoE-Out + PoE-In

Max. power consumption [W]:9,4

Physical characteristics

Purpose:Indoor

Buttons:Reset

Operating temperature [°C]:0 up to 40

Weight [g]:230

Width [mm]:86

Height [mm]:38

Depth [mm]:160

Software

Operating mode:Access Point

IPv6 support:Yes

Default IP address:Dynamic from DHCP

Default login and password:Is set by the user at the first startup
