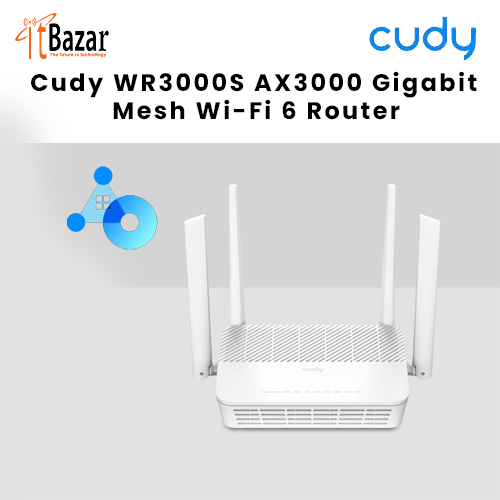

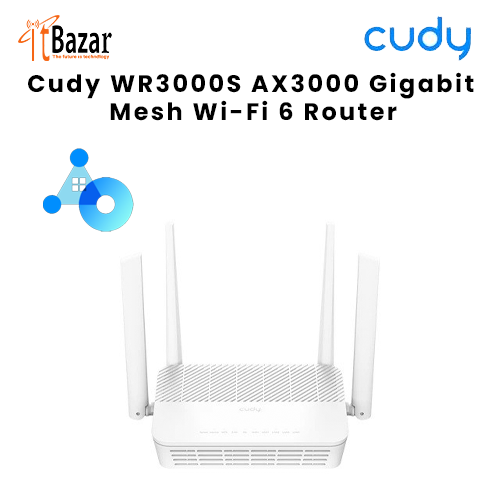

Cudy Router WR3000S AX3000 Gigabit WiFi6 Mesh  Router

Key Features of WR3000S:

4-Stream Dual-Band Wi-Fi 6

5× Gigabit Ethernet Ports

2402 Mbps + 574 Mbps Wi-Fi

200 Connected Devices

Cudy App, Cloud Control

Brand Cudy

Model WR3000S

Type WR3000S Gigabit Mesh Wi-Fi 6 Router

CPU 1.3 GHz Dual-Core, ARM Cortex-A53

Memory/Storage Flash/ROM: 128 MB (1 Gbit) NAND

DDR/RAM: 256 MB (2 Gbit) DDR3

Wireless 5 GHz Wi-Fi Speed: 2402 Mbps

2.4 GHz Wi-Fi Speed: 574 Mbps

5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO)

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 4× Fixed

5 GHz Antenna Gain Max: 5.3dBi

2.4 GHz Antenna Gain Max: 5.3dBi

FEM or PA/LNA

5 GHz: 3× Internal

2.4 GHz: 2× Internal

Beamforming: True

Range Performance:

Max: 220 m (722 ft)

Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions

Wall Performance: Two wooden walls with a thickness < 10 cm (4'')

One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

Interfaces Gigabit RJ45 Ports: 5

Ethernet Notes: 1× WAN port, the rest are LAN ports

LED: System, Internet, WPS, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WAN, LAN

Physical Buttons: WPS Button, Reset Button

Power Input: DC Jack

Power Power Methods: DC

DC: 12V 1A

Power Adapter:

Input: 100 ~ 240 V, 50/60 Hz AC

Output: 12V 1A DC

Max Power Consumption (W): 7.5W

Reliability Environment:

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 95% non-condensing

Installation Desktop

Wall-mount

Wireless Wi-Fi Standards: Wi-Fi 6

Max Wi-Fi Modulation: 1024-QAM

Wi-Fi Efficiency: OFDMA, MU-MIMO, BSS Color

Max Capacity: 512

Recommended Client Upper Limit: 200

Max Wi-Fi Channel Width: 160 MHz

Wi-Fi Security: WPA/WPA2/WPA3

Guest Network: 2.4 GHz, 5 GHz

WPS: True

General Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client

Mesh: Cudy Mesh

Mesh Backhaul: Wireless Backhaul, Wired Backhaul

Multi-Band Backhaul: True

WAN Mode: DHCP, Static IP, PPPOE

Internet Failover Sequence: WAN, WISP

Network QoS: Per-User Rate Limiting

DHCP: Address Reservation, DHCP Client List, Server

IP Versions: IPv4/IPv6

IPv6 Protocols: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite

IPTV/VLAN: Bridge, Tag VLAN

TTL Customization: Extend, Spoof, Custom

IGMP: IGMP Proxy, IGMP Snooping

Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ

Firewall: SPI Firewall, DoS Protection, Block PING

Application Layer Gateway:

IPSec Passthrough

L2TP Passthrough

PPTP Passthrough

FTP Passthrough

TFTP Passthrough

H323 Passthrough

SIP Passthrough

RTSP Passthrough

Utilities VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

VPN Performance:

OpenVPN Client (UL/DL): 90 / 120 Mbps

OpenVPN Server (UL/DL): 180 / 160 Mbps

WireGuard Client (UL/DL): 224 / 230 Mbps

WireGuard Server (UL/DL): 160 / 90 Mbps

OpenVPN Client (UL/DL): 90 / 120 Mbps

OpenVPN Server (UL/DL): 180 / 160 Mbps

WireGuard Client (UL/DL): 224 / 230 Mbps

WireGuard Server (UL/DL): 160 / 90 Mbps

DNS Options: DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS

DNS over TLS Providers: Cloudflare, Google, Quad9, Custom

Captive Portal: True

Wake on LAN: True

Online Detection: True

Management All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding

Per-Devices Management: Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename

Content Management: Domain Filter, IP Filter

System Local Control Method: Config Web Page, App Control

Remote Control Method: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR181

Firmware Upgrade: Local Update, App (Over the Air), Online Update

Reliability: Timed Reboot, Backup and Restore

Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log

Languages: English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese

Dashboard Panel:

Internet Status

Mesh Status

Devices Management

WAN Status

LAN Status

WISP Status

Wi-Fi Status

VPN Status

DHCP Server Status

System Version

Dimensions Dimension:

173×123.8×33 mm

6.81×4.87×1.3 inches

Retail Package Dimension:

304×268×54 mm

11.97×10.55×2.13 inches

Weight Retail Package Weight: 725 g (25.57 oz.)

Included in the Box WR3000S

Power Adapter

Ethernet Cable

Installation Guide

Warranty Details 1-Year Brand Warranty
