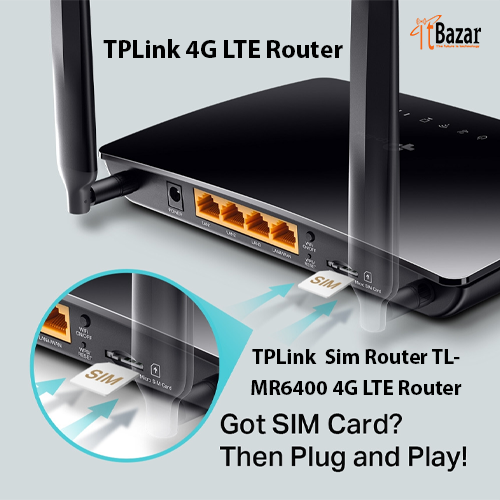

TPLink  Sim Router TL-MR6400 4G LTE Router

300 Mbps Wireless N 4G LTE Router

Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests

Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas

Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

HARDWARE FEATURES

Ports 3× 10/100 Mbps LAN ports

1× 10/100 Mbps LAN/WAN Port

1× Micro SIM Card Slot

2× External SMA-F Antenna Interface

Button WPS/RESET Button, WiFi ON/OFF Button

External Power Supply(EU) 9V/0.85A

Dimensions ( W x D x H ) 6.85 × 4.9 × 1.32 in. (174 × 124.5 × 33.5 mm)

Antenna Type 2× Detachable External 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11b, 802.11g, 802.11n

Frequency 2.4 GHz

Signal Rate 300 Mbps at 2.4 GHz

Reception Sensitivity 11g 54M: -74 dBm

11n HT20: -71 dBm

11n HT40: -67 dBm

Transmit Power <20 dBm (2.4 GHz)

Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM,

Wireless Statistics

WAN Failover Yes

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type 4G: FDD-LTE Cat4 (800/900/1800/2100/2600 MHz),

TDD-LTE (2300/2500/2600 MHz)

3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100 MHz)

SOFTWARE FEATURES

Quality of Service WMM, QoS

Operating Modes 3G/4G Router, Wireless Router

Management Access Control, Local Management, Remote Management

WAN Connection Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

DHCP Server, Client, DHCP Client List, Address Reservation

Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS TP-Link DDNS, DynDns, NO-IP

VPN Pass-Through PPTP, L2TP, IPSec

Access Control Parental Controls, Local Management Control, Host List, Access

Control

Firewall Security DoS, SPI Firewall, IP and MAC Address Binding

Protocols Supports IPv4 and IPv6

Guest Network 2.4 GHz Guest Network

VPN Server PPTP VPN, OpenVPN

OTHERS

Certification CE, RoHS

Package Contents 300Mbps Wireless N 4G LTE Router TL-MR6400

1.5m Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browser or higher, or other Java-enabled browsers

Micro SIM Card

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~60℃ (-40℉ ~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
