VSOL SWITCH V3528E 24PORT GIGA ETHER 10G PORT 4 SFP+
Inhouse product

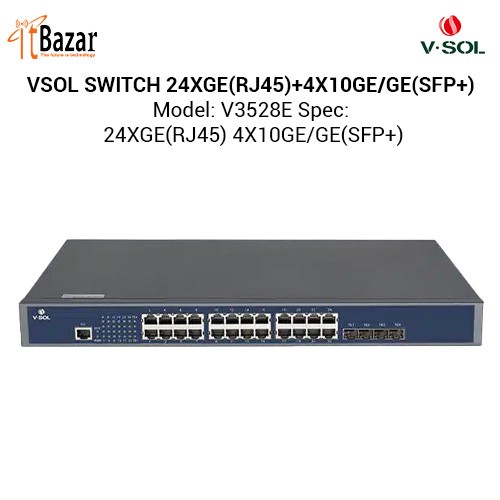

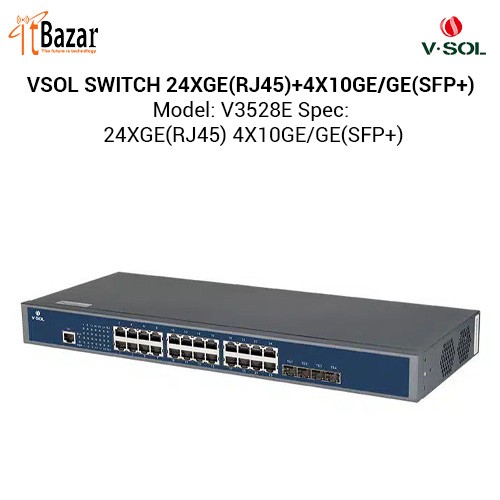

VSOL SWITCH V3528E 24PORT GIGA ETHER 10G PORT 4 SFP+
24*GE(RJ45)+4*10GE/GE(SFP+) Switch
Model: V3528E
Spec: 24*GE(RJ45) +4*10GE/GE(SFP+)
Weight: 3.4/4.4kg
A cutting-edge smart switch designed for carrier IP MAN and enterprise networks. This state-of-the-art device combines advanced hardware technology with the robust ROS platform to deliver exceptional performance. Equipped with a wide range of features including ACL, selective QinQ, 1:1 and N:1 VLAN switching, Ethernet OAM, carrier-level QoS, and industry-level 10G Ethernet ring, the V35XX sets new standards in network functionality. Upgrade to the VSOL V3528E and experience the future of seamless connectivity.
Technical parameters
Parameter V3528E V3528EF V3528-P V3552E
Interfaces
24*GE (RJ45)+
4*10GE/GE (SFP+) 16*GE (SFP) +
8*GE (SFP/RJ45 combo) +
4*10GE/GE (SFP+)
24*GE (RJ45, POE) +
4*10GE/GE (SFP+)
48*GE (RJ45) +
4*10GE/GE (SFP+)
Console(RJ45) 1 1 1 1
Backplane(Gbps) 128 128 128 216
Forwarding rate(Mpps with 64 bytes) 96 96 96 162
Chassis Dimensions
(WxDxH)(mm)
440x180x44
440x280x44
440x280x44
440x280x44
Weight
(KG)(empty) 2.4/3.4 3.5 3.5 3.8
Package Dimensions (WxDxH)(mm)
500x320x80
576x448x94
555x448x94
576x448x94
Weight(KG) 3.4/4.4 4.5 4.5 4.6
Power consumption no-load ＜22W ＜18W ＜25W ＜25W
full-load 35W ＜38W ＜408W ＜48W
Power supply AC:100V-240V, 50/60Hz
DC:-36V~-75V
45W
45W
410W
50W
POE power budgest / / 370W /
Total output BTU(1000BTU/H=293W) 153.58 153.58 1392.49 163.82
Fan number / 2 2 2
Noise@25℃(dBA) 0 45 37.5 45
MTBF(H) ＞200,000 ＞200,000 ＞200,000 ＞200,000
Forwarding mode Store-forward Store-forward Store-forward Store-forward
Flash(MB) 16 16 16 16
DRAM(MB) 256 256 256 512
MAC 16K 16K 16K 16K
Buffer size(MB) 1.5 1.5 1.5 1.5
Interface VLAN 64 64 64 64
Routing table 512 512 512 512
Jumbo frame 9K 9K 9K 9K
