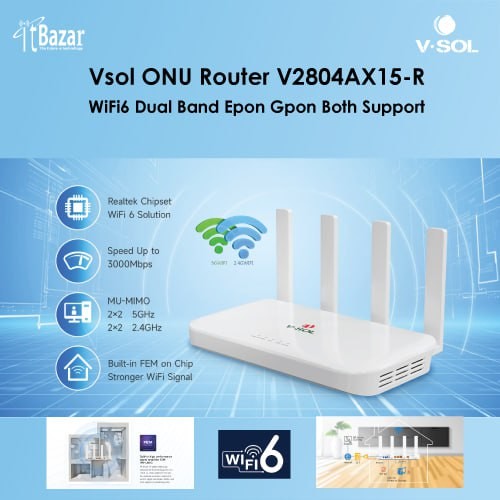

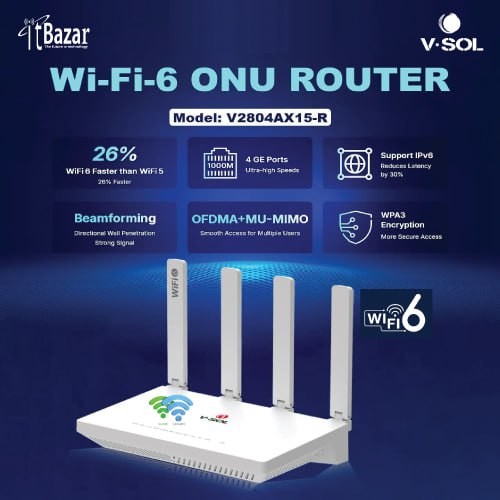

Vsol ONU Router V2804AX15-R

1XPON+4GE+1USB3.0+WiFi6 HGU ONT

সাধারণ রাউটার এর পরিবর্তে ফাইবার পোর্ট যুক্ত V-SOL এর অনু রাউটার আপনাকে দিবে দুর্দান্ত ও স্মুথ ইন্টারনেট স্পিড।

রাউটারের দামেই এখন পাচ্ছেন ফাইবার রাউটার।

Introduction:

V2804AX15-R (4GE+WiFi6 XPON HGU ONT) is a broadband access device designed to meet the demands of fixed networkoperatorsfor FTTH. This ONT is based on a high-performance chip solution, supporting XPON dual-mode technology (EPON and GPON). WithWiFi speedsof up to 1500Mbps, it also supports IEEE 802.11b/g/n/ac/ax WiFi 6 technology and other Layer 2/Layer 3 features, providingdataservices for carrier-grade FTTH applications. In addition, this ONT supports OAM/OMCI protocols, allowing configurationandmanagement of various services on the VSOL OLT, making it easy to manage and maintain, and ensuring QoS for various services. Itcomplies with international technical standards such as IEEE802.3ah and ITU-T G.984. V2804AX15-R comes in two color options for its body shell, black and white. With a bottom disc fiber structure design, it canbeplacedon a desktop or wall-mounted, adapting effortlessly to various scene styles!

Dimension 260.4mm×157.4mm×45.8mm(L×W×H)

Net weight 0.45Kg

Operating

condition

Operating temp: -10 ~ +55°C

Operating humidity: 5 ~ 95% (non-condensed)

Storing

condition

Storing temp: -40 ~ +70°C

Storing humidity: 5 ~ 95% (non-condensed)

Power

adapter

DC 12V, 1.5A, external AC-DC power adaptor

Power supply ≤18W

Interface

1XPON+4GE+1USB3.0+WiFi6

Indicators

PWR ,PON ,LOS ,WAN ,LAN1~4 ,2.4G ,5G , WPS ,USB

Function Data

O&M

• WEB/TELNET/OAM/OMCI/TR069• Support private OAM/OMCI protocol

Internet

connection

Support Routing Mode

Multicast • IGMP v1/v2/v3, IGMP snooping• MLD v1/v2 snooping

WIFI

• WIFI6:802.11a/n/ac/ax 5GHz

• WIFI4: 802.11g/b/n 2.4GHz

• WiFi: 2.4GHz 2×2, 5.8GHz 2×2, externalantennas, rate up to 1.5Gbps,MultipleSSID• WiFi Encryption: WEP-64/WEP-128/

WPA/WPA2/WPA3

• Support OFDMA, MU-MIMO, DynamicQoS,1024-QAM

• Smart Connect for one Wi-Fi name- OneSSID for 2.4GHz and 5GHz dual band• Support WIFI Easy-mesh functionL2

802.1D&802.1ad bridge, 802.1pCos,802.1QVLAN

L3

IPv4/IPv6, DHCP Client/Server,PPPoE, NAT,DMZ, DDNS

Firewall

Anti-DDOS, Filtering Based onACL/MAC/URL
