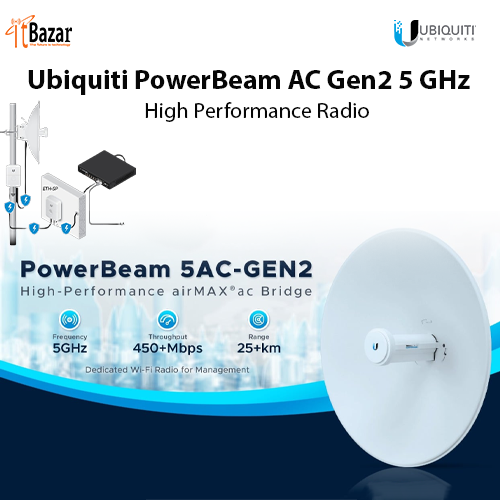

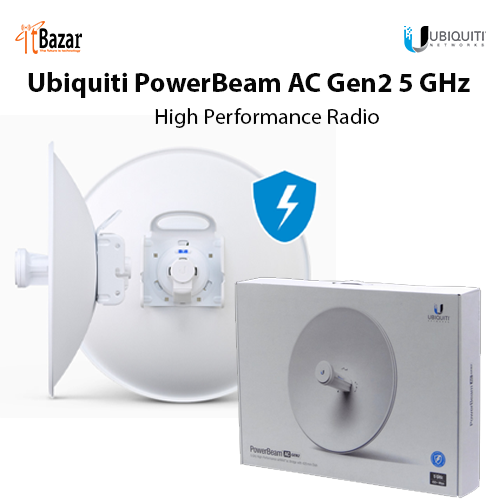

Ubiquiti PowerBeam AC Gen2 5 GHz High Performance Radio
Inhouse product
Ubiquiti PowerBeam AC Gen2 5 GHz High Performance airMAX Bridge PBE-5AC-Gen2
উবিকুইটি পাওয়ার বিম রেডিও লিংক।পয়েন্ট টু পয়েন্ট
The Ubiquti PowerBeam 5AC Gen 2 incorporates a dish reflector design with proprietary airMAX ac technology, making this device ideal for CPE deployments requiring maximum performance.
Ubiquti PowerBeam 5AC Gen 2 Key Features
Frequency 5 GHz
Range 25+ km
Highly Efficient Antenna Beam Performance
Up to 450+ Mbps Throughput
Dedicated Wi-Fi Radio for Management
Specifications
PBE-5AC-Gen2
Dimensions 420 x 420 x 230 mm
(16.54 x 16.54 x 9.06")
Weight 2.22 kg
(4.89 lb)
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor MIPS 74Kc
Enclosure Characteristics
Antenna Feed Outdoor UV Stabilized Plastic
Dish Reflector Powder-Coated SPCC
Max. Power Consumption 8.5W
Max. TX Power 24 dBm
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 to 26VDC
Wind Loading 380 N @ 200 km/h
(85.4 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
Mounting Pole Mounting Kit Included
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibrations ETSI300-019-1.4
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150 - 5875
US/CA U-NII-1 5150 - 5250
U-NII-2A 5250 - 5350
U-NII-2C 5470 - 5725
U-NII-3 5725 - 5850
Management Radio (MHz)
Worldwide 2412 - 2472
US/CA 2412 - 2462
