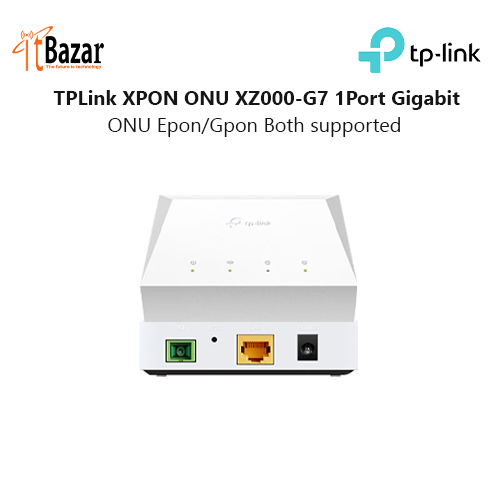

TPLink XPON ONU XZ000-G7 1Port Gigabit ONU Epon/Gpon Both supported টিপি লিংক এক্সপন অনু ইপন ,জীপন বোথ সাপোর্টেড

1-Port Gigabit XPON Terminal

Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*

XPON Support: EPON + GPON dual mode offers greater flexibilty for fiber internet access

Durability: Intelligent power-saving method

Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.

HARDWARE FEATURES

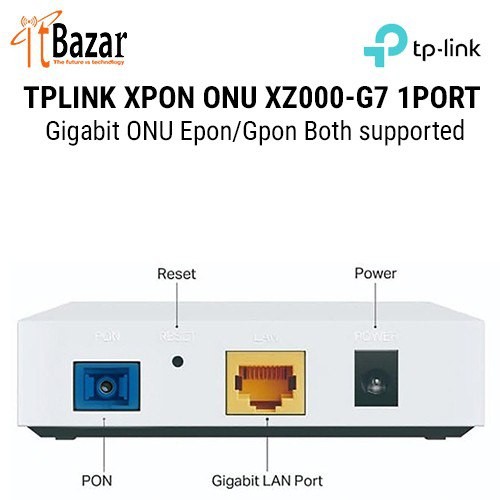

Interface 1 PON Port

1 10/100/1000 Mbps RJ45 Port

Button 1 RESET Button

External Power Supply 9VDC/0.6A

IEEE Standards IEEE 802.3, 802.3u, 802.1p, 802.1Q

Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)*

Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)*

Wavelength Upstream: 1310 nm

Downstream: 1490 nm

Dimensions ( W x D x H ) 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)

Distance 0–20 Km Max

GPON Standards ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4

Optical Module Class B+

Receiver Super-TIA

Transmitter DFB Laser

SOFTWARE FEATURES

Advanced Features Upstream and Downstream FEC,

Dynamic Bandwidth Allocation(DBA) support NSR/SR,

Up to 16 T-CONTs and 256 GEM Ports,

Optical power detection,

Dying Gasp,

Terminal Silent mechanism

VLAN 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect

Security AES Encryption, Packet Filter based on VLAN

Management Local management: WebGUI, Telnet

Remote management: OMCI

IGMP IGMP v1/v2/v3

OTHERS

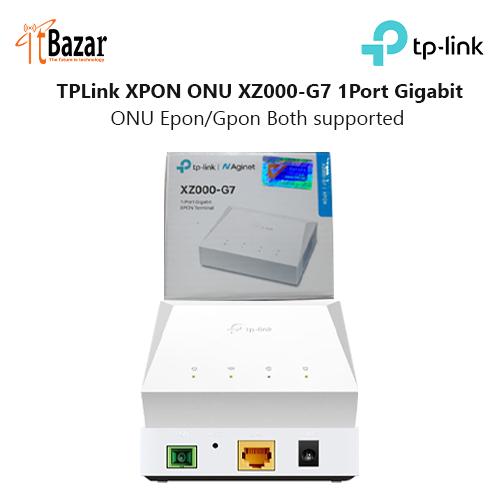

Package Contents XZ000-G7

Power Adapter

Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Subscription with an internet service provider (for internet access)

Certifications CE, RoHS

Environment Operating Temperature: 0℃–40℃ (32℉–104℉)

Storage Temperature: -40℃–60℃ (-40℉–140℉)

Operating Humidity: 10%–90% non-condensing

Storage Humidity: 5%–90% non-condensing
