TPLink TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

9× 10/100 Mbps RJ45 ports

8× PoE+ ports transfer data and power on individual cables

Works with IEEE 802.3af/at compliant PDs

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 65 W for 8 PoE ports*

Up to 250 m data and power transmitting range under Extend Mode**

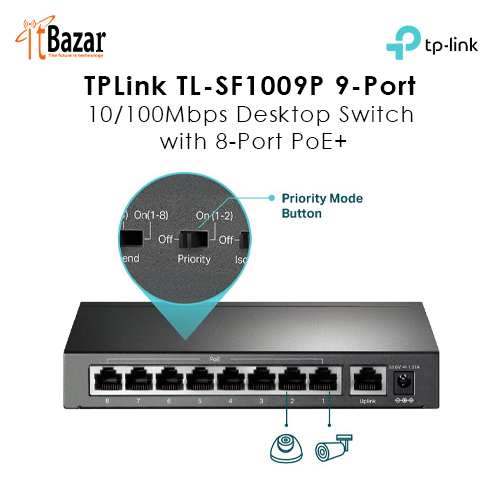

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

Isolation Mode allows one-click client traffic separation for higher security and performance

Plug and play with no configuration required

HARDWARE FEATURES

Interface • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)

Packet Forwarding Rate 1.3392 Mpps

PoE Ports (RJ45) • Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–8

• Power Supply: 65 W

Mac Address Table 2K

Jumbo Frame 2 KB

Switching Capacity 1.8 Gbps

Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption • 3.6 (220/50 Hz. no PD connected)

• 77.08 (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation • 12.28 BTU/h (no PD connected)

• 262.84 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs

• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)

• Priority Mode Button (Ports 1–2)

• Isolation Mode Button (Ports 1–8)

• Mac Address Auto-Learning and Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS

Package Contents • TL-SF1009P

• Power Adapter

• Installation Guide

Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
