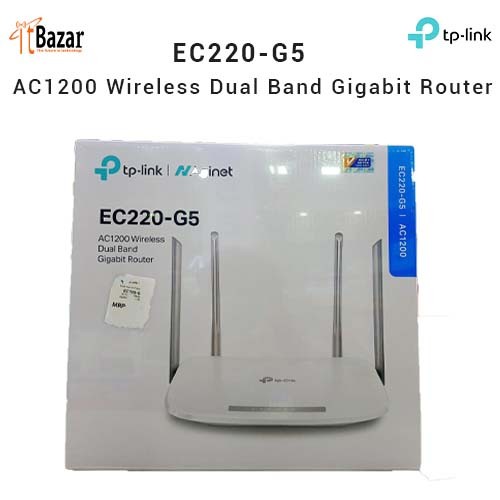

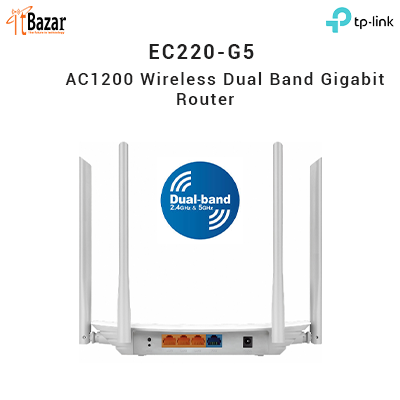

TpLink EC220-G5  AC1200 DUAL BAND GIGABIT  Wireless Router

AC1200 Wireless Dual Band Gigabit Router

AC1200 Dual Band WiFi: Delivers total WiFi speeds up to 1200 Mbps on the 2.4 GHz and 5 GHz bands.*

Full Gigabit Ports: Enjoy fast, reliable wired connections for gaming and streaming at the best quality.

Extensive Coverage: Beamforming and four antennas combine to deliver focused reception to devices far away.

EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.†

Enhanced Protection: Protect your network with firewalls, parental controls, and the latest WPA3 encryption.**

Easy Setup: Set up your router in minutes with the intuitive web interface or Aginet app.

Remote Management: Aginet ACS, TR-069, TR-181, TR-111, and TR-143 are supported.

HARDWARE FEATURES

Interface 1 10/100/1000 Mbps WAN Port

3 10/100/1000 Mbps LAN Ports

External Power Supply 12V/1.0A

Dimensions ( W x D x H ) 9.1 × 5.7 × 1.5 in (230.0 × 144.0 × 37.0 mm)

Antenna 4 External Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11 k/v

Frequency 2.4 GHz and 5 GHz

Signal Rate 2.4 GHz: 300 Mbps

5 GHz: 867 Mbps*

Transmit Power CE: <20 dBm(2.4 GHz), <23 dBm (5 GHz)

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Schedule, Wireless Statistics, Access Point mode

Wireless Security WPA/WPA2/WPA3 encryptions

Mesh Technology EasyMesh compatible and supports 802.11 k/v

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control

WAN Type Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Management Local management: WebGUI, Aginet app

Remote management: TR-069, TR-181, TR-111, TR-143, Aginet ACS

DHCP Server, Client, DHCP Client List, Address Reservation

Port Forwarding Vritual Server, Port Triggering, DMZ, UPnP

VPN Pass-Through PPTP, L2TP, IPSec

Access Control Parental Controls, Local Management Control, Host List, White List, Black List

Firewall Security DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding

Protocols Supports IPv4 and IPv6

OTHERS

Package Contents AC1200 Wireless Dual Band Gigabit Router EC220-G5

Power Supply Unit

RJ45 Ethernet Cable

Quick Installation Guide

Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Java-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications CE, RoHS

Environment Operating Temperature: 0℃–40℃ (32℉–104℉)

Storage Temperature: -40℃–60℃ (-40℉–140℉)

Operating Humidity: 10%–90% non-condensing

Storage Humidity: 5%–90% non-condensing
