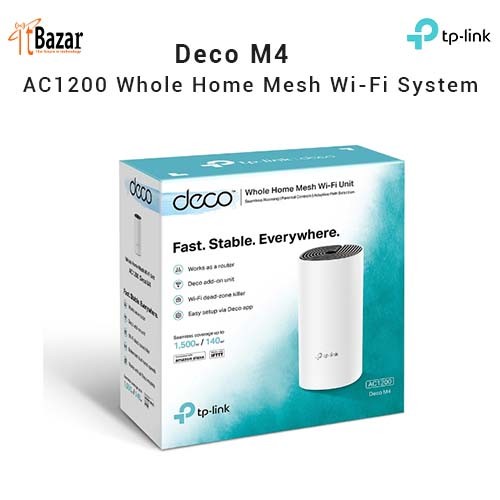

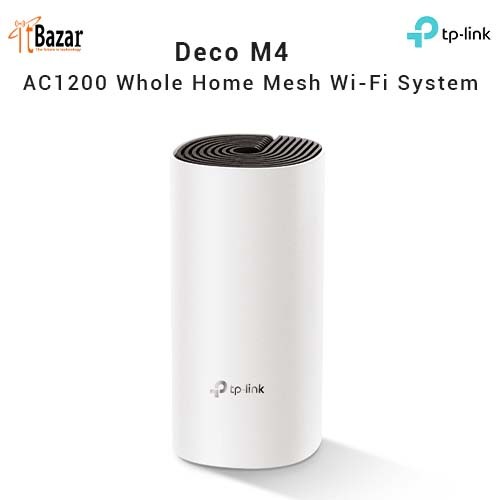

TPLink Deco M4 AC1200 Dual Band Whole Home Mesh Router Wi-Fi System

Deco M4

AC1200 Whole Home Mesh Wi-Fi System

Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!

With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds.

A Deco M4 one-pack delivers Wi-Fi to an area of up to 2,000 square feet (EU version)†. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.

Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps† and works with major internet service provider (ISP) and modem.

Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices†.

Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member.

Setup is easier than ever with the Deco app there to walk you through every step.

SECURITY

Network Security SPI Firewall

Access Control

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption WPA-Personal

WPA2-Personal

WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 3-5 Bedroom Houses (3-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2× Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Distribute devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes Router Mode

Access Point Mode

HARDWARE

Ethernet Ports 2× Gigabit Ports

*Per Deco Unit

Supports WAN/LAN auto-sensing

Buttons Reset Button

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

Management Deco App

TEST DATA

WiFi Transmission Power CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm

PHYSICAL

Dimensions (W×D×H) 3.6 × 3.6 × 7.5 in

(90.7 × 90.7 × 190 mm)

Package Contents Deco M4 (3-pack)

3 Deco M4R Units

1 RJ45 Ethernet Cable

3 Power Adapters

1 Quick Installation Guide

Deco M4 (2-pack)

2 Deco M4R Units

1 RJ45 Ethernet Cable

2 Power Adapters

1 Quick Installation Guide

Deco M4 (1-pack)

1 Deco M4R Unit

1 RJ45 Ethernet Cable

1 Power Adapter

1 Quick Installation Guide

OTHERS

System Requirements Android 5.0 or later

iOS 9.0 or later

*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
