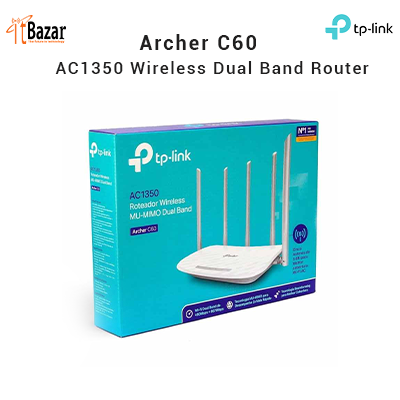

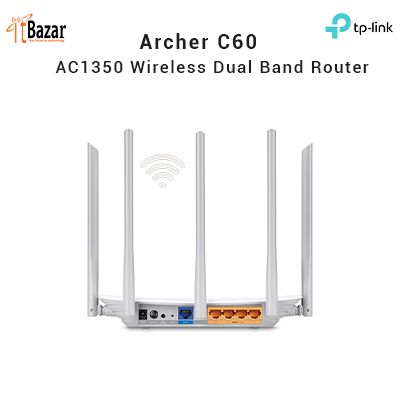

TPLink Archer C60 AC1350 Dual Band Wireless Router

AC1350 Wireless Dual Band Router

Get faster Wi-Fi at both the 2.4 GHz band (450 Mbps) and the 5 GHz band (867 Mbps)

The advanced AC Wi-Fi unlocks the performance of all your wireless devices

Three 2.4 GHz antennas and two 5 GHz antennas create superior Wi-Fi coverage

MU-MIMO achieves 2× efficiency by communicating with up to 2 devices simultaneously

Beamforming technology delivers highly efficient wireless connection (supported by Version 2.0 and above)

Advanced software functions like Parental Controls and Guest Network provide personalized management

Tether app provides easy router management in your palm

HARDWARE FEATURES

Interface 4 × 10/100Mbps LAN Ports

1 × 10/100Mbps WAN Port

Button WPS/Reset Button

Wireless On/Off Switch

Power On/Off Button

External Power Supply 12VDC/1A

Dimensions ( W x D x H ) 9.1×5.7×1.5in. (230×144×37mm)

Antenna 3 × 2.4GHz Antennas

2 × 5GHz Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac/n/a 5GHz

IEEE 802.11b/g/n 2.4GHz

Wireless Speeds 450Mbps(2.4GHz)

867Mbps(5GHz)

Frequency 2.4-2.5GHz

5.15-5.25GHz

Transmit Power CE:

<=20dBm （2.4G）

<=23dBm （5G）

Wireless Modes Wireless Router

WDS(Four Address)

WDS(AP+APC)

Wireless Security WEP

WPA\WPA2

WPA-PSK\WPA2-PSK

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control

WAN Type Dynamic IP/Static IP/PPPoE/

BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)

Management Access Control

Local Management

Remote Management

DHCP Server, Client, DHCP Client List, Address Reservation

VPN Pass-Through PPTP

L2TP

IPSec

Access Control Parental Control

Local Management Control

Host List

Access Schedule

Rule Management

Protocols IPv4

IPv6

Guest Network 2.4GHz guest network

5GHz guest network

OTHERS

Certification CE, RoHS

Package Contents AC1350 Wireless Dual Band Router Archer C60

Power supply unit

Ethernet Cable

Quick Installation Guide

Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)

Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Operating System Microsoft Windows XP/Vista/7/8/8.1/10

MAC OS, NetWare, UNIX or Linux
