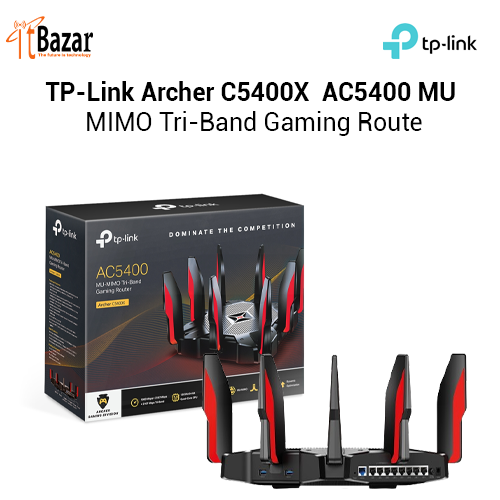

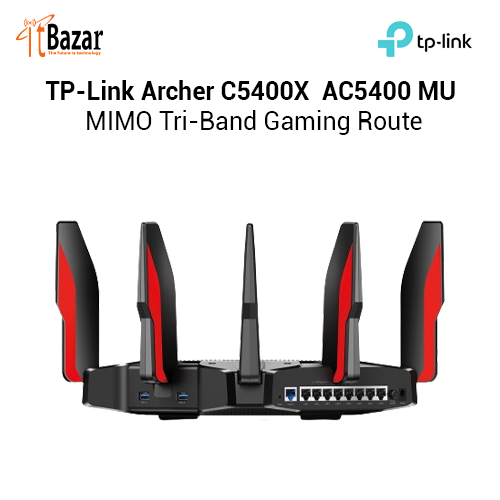

TPLink Archer C5400X  AC5400 MU-MIMO Tri-Band Gaming Route

Archer C5400X

AC5400 MU-MIMO Tri-Band Gaming Router

TP-Link first gaming router

1.8GHz 64-bit quad-core CPU, 3 co-processor and 1GB RAM

Tri-band with blazing fast speed at 5334 Mbps in total

HomeCare for all-around protection

VPN acceleration for 5 times faster VPN connection

SECURITY

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeCare™ Antivirus

Malicious Site Checker

Port Intrusion Prevention

Infected Device Isolation

Notification and Log

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC5400

5 GHz: 2167 Mbps (802.11ac)

5 GHz: 2167 Mbps (802.11ac)

2.4 GHz: 1000 Mbps (802.11n)

WiFi Range 4 Bedroom Houses

8× Detachable High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

4T4R

Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity High

Tri-Band

Allocate devices to different bands for optimal performance

4×4 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

DFS

Access an extra band to reduce congestion

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor 1.8 GHz 64 Bit Quad-Core CPU

Ethernet Ports 1× Gigabit WAN Port

8× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports

USB Support 2× USB 3.0 Ports

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power 12 V ⎓ 5 A

SOFTWARE

Protocols IPv4

IPv6

Service Kits HomeCare™

Learn More>

Parental Controls HomeCare™ Parental Controls

Custom Profiles

Content Filtering

App Block

URL Filtering

Time Limit

Time Schedule (Bedtime)

Log Insight

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service GeForce NOW™ QoS

QoS by Device

HomeCare™ QoS

QoS by Application

Cloud Service Auto Firmware Upgrade

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

PHYSICAL

Dimensions (W×D×H) 11.3 × 11.3 × 7.2 in

(288 × 288 × 184 mm)

Package Contents Wi-Fi Router Archer C5400X

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
