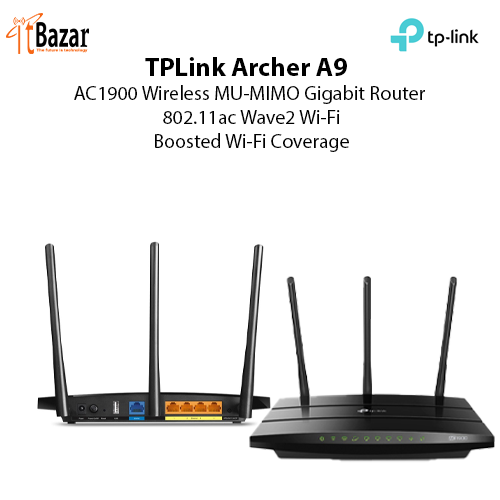

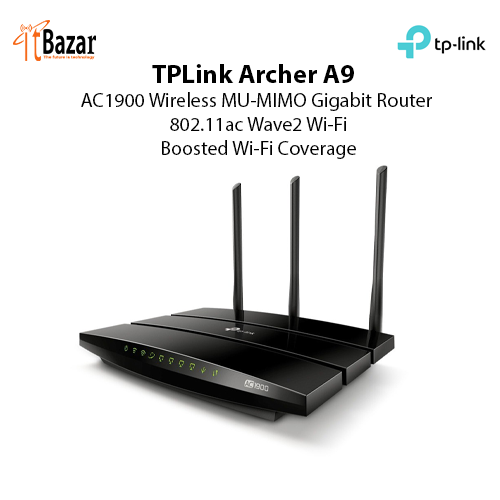

TPLink Archer A9 AC1900 Wireless MU-MIMO Gigabit Router

AC1900 Wireless MU-MIMO Gigabit Router

802.11ac Wave2 Wi-Fi – 600 Mbps at 2.4 GHz and 1300 Mbps at band.

MU-MIMO – 3 simultaneous data streams help your devices achieve optimal performance by making communication more efficient.

Boosted Wi-Fi Coverage – Beamforming technology delivers a highly efficient wireless connection.

Security Assurance – Advanced features like Parental Controls, Guest Network, and Access Control provide strong guarantee for Wi-Fi Security.

Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.

SECURITY

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

WIRELESS

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds AC1900

5 GHz: 1300 Mbps (802.11ac)

2.4 GHz: 600 Mbps (802.11n)

WiFi Range 3 Bedroom Houses

4× Fixed High-Performance Antennas (External and Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity Medium

Dual-Band

Allocate devices to different bands for optimal performance

3×3 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes Router Mode

Access Point Mode

HARDWARE

Processor Single-Core CPU

Ethernet Ports 1 × Gigabit WAN Port

4 × Gigabit LAN Ports

USB Support 1× USB 2.0 Port

Supported Partition Formats:

NTFS, FAT32

Supported Functions:

FTP Server

Media Server

Samba Server

Buttons WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Power 12 V ⎓ 1.5 A

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power CE:

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC:

<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity 5GHz:

11a 6Mbps: -93dBm, 11a 54Mbps: -76dBm

11ac HT20 mcs8 : -68dBm, 11ac HT40 mcs9: -64dBm

11ac HT80 mcs9: -61dBm

2.4GHz:

11g 54Mbps: -77dBm

11n HT20 mcs7: -74dBm, 11n HT40 mcs7: -72dBm

PHYSICAL

Dimensions (W×D×H) 9.6 × 7.3 × 1.3 in

(243.5 × 186.5 × 32.7 mm)

Package Contents Wi-Fi Router Archer A9

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
