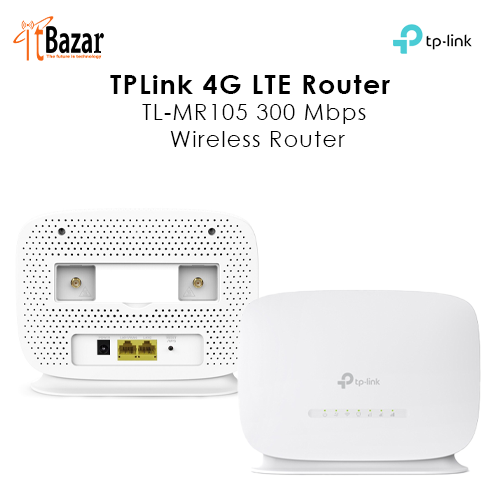

TPLik TLMR105 4G LTE Router  300 Mbps Wireless Router

300 Mbps Wireless N 4G LTE Router

Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests

Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

HARDWARE FEATURES

Interface 1 10/100Mbps LAN Port

1 10/100Mbps LAN/WAN Port

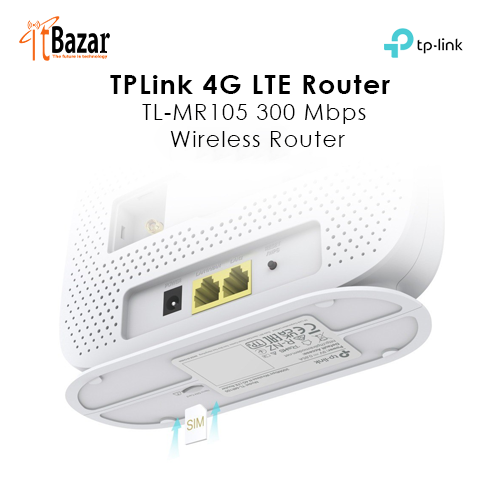

1 Nano SIM Card Slot

2 External SMA-F Antenna Interface

Button Reset/WPS Button

External Power Supply(EU) 9V/0.85A

Dimensions ( W x D x H ) 6.85×5.12×2.36 in (174×130×60 mm)

Antenna 2× Internal 4G/3G Antennas

2× Internal Wi-Fi Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n

Frequency 2.4 GHz

Signal Rate 300 Mbps

Reception Sensitivity 11g 54M: -74dBm

11n HT20: -73dBm

11n HT40: -70dBm

Transmit Power < 20 dBm (2.4 GHz)

Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover Yes

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Security IPv4 SPI Firewall, IP and MAC Address Binding

Operating Modes 3G/4G Router, Wireless Router

WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Local Management, Remote Management

DHCP Server, DHCP Client List, Address Reservation

Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS TP-Link, DynDns, NO-IP

Protocols IPv4, IPv6

Guest Network 2.4 GHz Guest Network

Administration Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS

Certification CE, RoHS

Package Contents 300 Mbps Wireless N 4G LTE TL-MR105

1.5m Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Nano SIM Card

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
