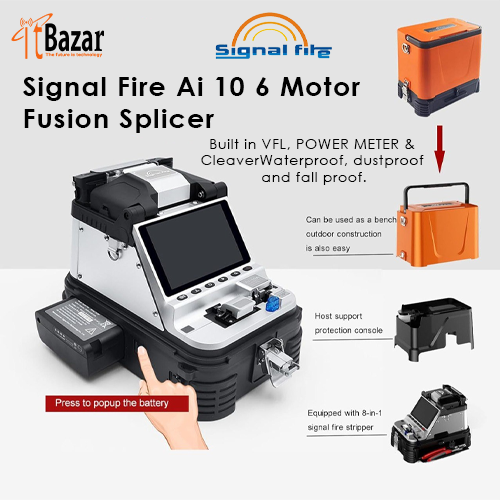

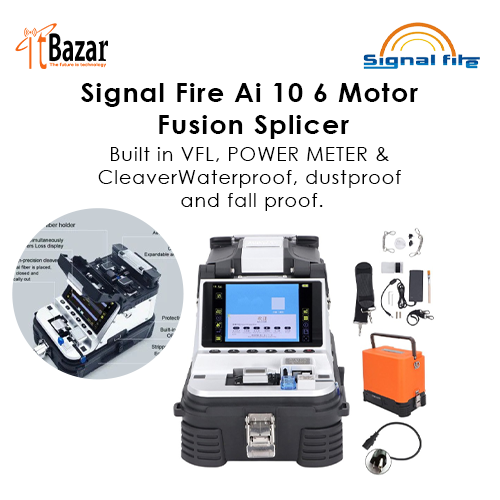

Signal Fire Ai 10A Optical Fiber Fusion Splicer 6Motor Built in VFL, Power Meter & Cleaver

With 5-inch 800X480 high-resolution screen, is up to 300 times focus magnifications, making it easy to observe the fiber with naked eyes;6s fast splicing 15s fast heating,the working efficiency increased by 50% compared to ordinary splicing machines.

3 In 1 Fiber Holder suit for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable;Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS);Fiber diameter:Cladding Diameter：80-150μm、Coating Diameter：100-1000μm;Fiber Cleave Length:Coating less than 250µm：8-16mm、Coating less than 250-1000µm:16mm.

Built-In power meter (Wavelength 850nm/1300nm/1310nm/1490nm/1550nm/1625nm); Built-in Visual Fault Locator:Power:15mw,2hz flashing And Constantly Bright Mode.

Configure it on the phone app,splicing is easy to operate.10 Languages to switch freely :English,french,Russion,Italian,Portuguese,Polish,Spanish,Thai,Arabic. splicing record storage, synchronize to the phone, the server to cloud storage unlimited.

It is especially suitable for optical fiber and cable projects, maintenance scientific research, railway, petrochemical, electric power, military and public security and other communications fields.

Fiber alignment   Core/cladding

  Motor number   6 motors

  Splicing time   6s

  Heating mode   15s， can be customized according to the external environment

  Fiber type   Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion;

  The cladding diameter   80-150μm

  Splicing loss   0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）

  Splicing mode   Automatic focusing core alignment, conventional/high precision welding

  Splicing way   Automatic, semi-automatic

  Fiber holder   Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable

  Fiber cleaver   Equipped with electric high-precision cleaver

  VFL   The machine comes with: power: 15mW, 2Hz flashing and steady on mode

  OPM   Wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm/Measurement range: -50+26dbm Absolute error: <0.3dB (-50dbm ~+3dBm range)

  Battery capacity   7800mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 240 cores

  Magnification   320x (X or Y axis single display) 200x (x and Y axis dual display)

  Fiber diameter   Coating diameter: 80-150μm/Coating diameter: 100-1000μm

  Cutting length   Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm

  Heat shrink tube   60mm、50mm、40mm、25mm

  Tensile testing   standard 2N

  Display   5 inch TFT color display screen

  External lighting   USB port can be connected with EXTERNAL LED light, convenient for night construction

  Charge mobile device   The USB port can charge mobile devices such as mobile phones

  Boot time   1s, boot can enter the working mode

  Data is stored   Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.

  Wireless communication   Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m

  Software upgrade   Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software

  Management function   The equipment owner can be bound as the highest authority, and can remotely view the welding records,welding time, loss, etc.

  through the mobile phone APP. The number of welding times or working time of the equipment can be set.

  The manager can effectively manage a single or multiple equipment.

  Interface   USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices

  Return loss   Better than 60 db

  Product protection   Waterproof, dustproof and fall proof

  Power supply   Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level

  The work environment   Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s
