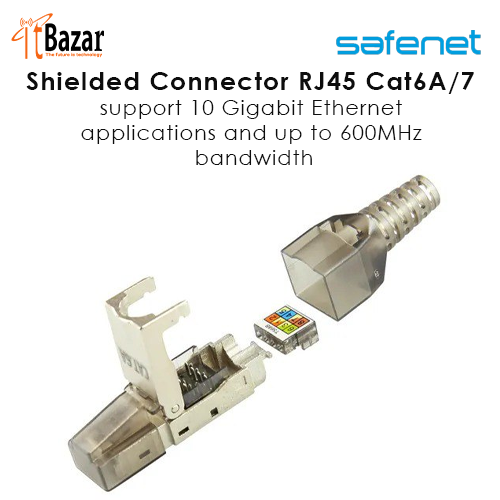

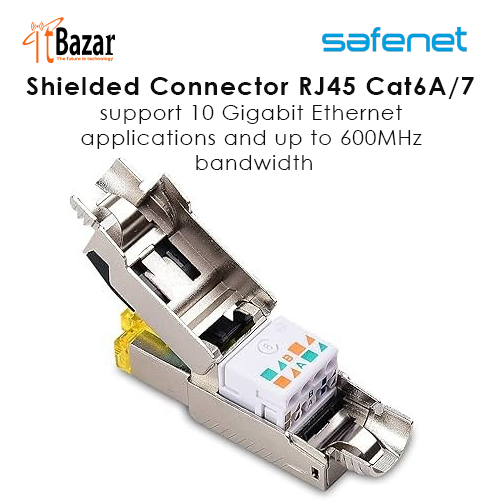

Shielded Connector RJ45 Cat6A/7
ith the ability to support 10 Gigabit Ethernet applications and up to 600MHz bandwidth, this RJ45 cat6A plug ensures optimal network efficiency.
One of the distinguishing features of the plug is its toolless design, enabling rapid and effortless installation without the need for a crimping tool.
Its zinc alloy die-casting housing provides enhanced durability and longevity.
Plus, it is equipped with 50u gold plated contacts and a dust cap, ensuring stable and reliable connections in various conditions.
Our plug accommodates AWG24-22 bare copper wires with diameters ranging from 0.50 to 0.64mm and supports both T568A and T568B wiring schemes.
With a maximum contact resistance of 100MΩ and a minimum insulation resistance of 500MΩ, it guarantees efficient data transmission.
Also, it features a 5.9dB return loss and an operating temperature range of -10 to 60 degrees Celsius.
Furthermore, compliant with ROHS certification, this RJ45 cat6A plug adheres to the highest environmental and safety standards.
