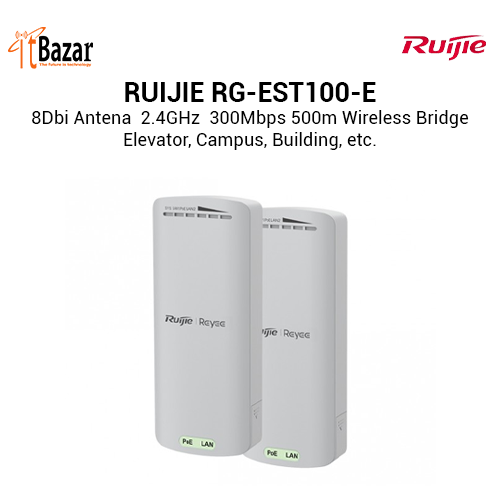

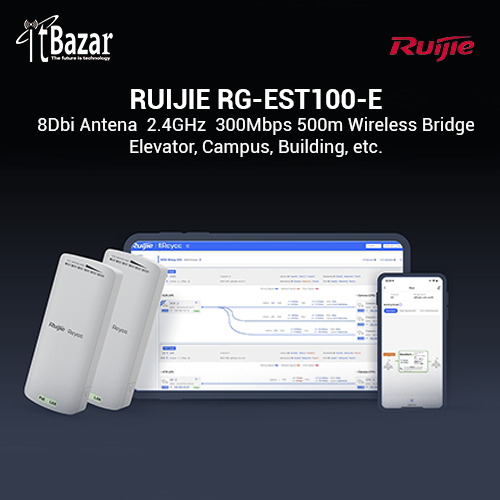

RUIJIE RG-EST100-E RADIO BRIDGE 8Dbi Antenna 2.4GHz 300Mbps 500m Wireless Bridge
Inhouse product
RUIJIE RG-EST100-E RADIO BRIDGE 8Dbi Antenna 2.4GHz 300Mbps 500m Wireless Bridge রুইজি আউটডোর রেডিও লিংক ডিভাইস
Elevator, Campus, Building, etc.
Highlight Features
RG-EST100-E can easily transmit data from 500m away in real time
Factory-free configuration, without complex alignment
IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Key Specification
Radio Design
2.4 GHz Single-Band Dual-Stream
Transmission Protocol
IEEE 802.11b/g/n
Operating Band
802.11b/g/n: 2.400～2.483GHz
Antenna
Directional antennas, 8 dBi
Polarization
Horizontal: 70°, Vertical: 70°
Bridging Distance
500m (recommended)
Spatial Streams
2x2, MU-MIMO
Memory/Flash
64 MB/8 MB
Maximum Throughput
Up to 300 Mbps at 2.4 GHz
Max. Transmit Power
≤100 mW(20 dBm) (adjustable)
IP Rating
IP55
Lightning Protection
±6 KV(Common Mode)
Installation
Wall-mounted/ Pole-mounted
Dimensions （D x W x H）
165.5mm×68.7mm×42mm
Weight
0.3 kg
