Description

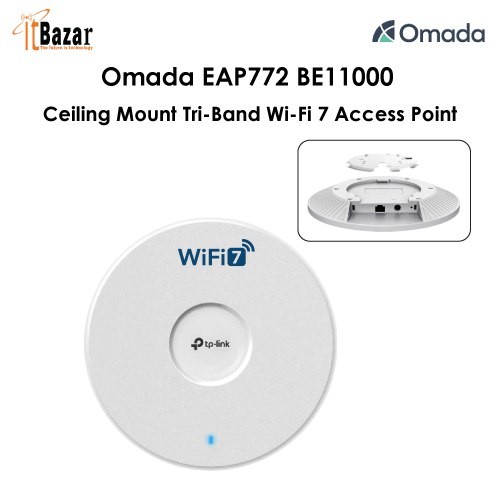

Omada EAP772 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

BE11000 Tri-Band Wi-Fi 7 (5765 Mbps on 6 GHz + 4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).

A clear 6 GHz band brings cleaner and wider band resources.

1× 2.5GbE Port unlocks the full potential of Wi-Fi 7.

320 MHz bandwidth enables many more simultaneous transmissions.

Multi-Link Operation and Multi-RUs ensure the high performance of your network.

Advanced Functions: Centralized management, Mesh, and Seamless Roaming.

HARDWARE FEATURES
Interface	1× 2.5G Ethernet Port
Button	Reset
Power Supply	• 802.3at PoE • 12V/2.5A DC Note: DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.
Max. Power Consumption	• 25.44 W (For PoE); • 22.57 W (For DC)
Dimensions ( W x D x H )	8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna	• 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi
Bluetooth	1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.
Mounting	Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES
Coverage	140㎡(1500 ft²)^§
Concurrent Clients	380+^**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)^†
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO^‡ • EHT320^‡ • Mesh^△ • BSS Coloring^‡ • OFDMA^‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication^△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	< 25dBm （2.4GHz） < 25dBm （5GHz） < 23dBm （6GHz）

Management Features
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes

OTHERS
Certification	CE, FCC, RoHS, IC

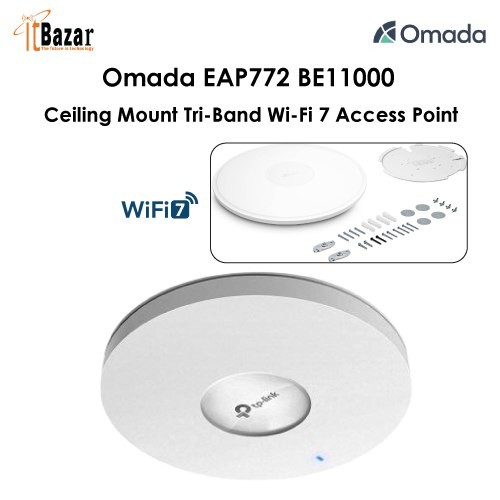

Package Content	• EAP772 • Installation Guide • Ceiling/Wall/Junction Box Mounting Kits Note: Power Adapter is NOT included.
Environment	• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing;
