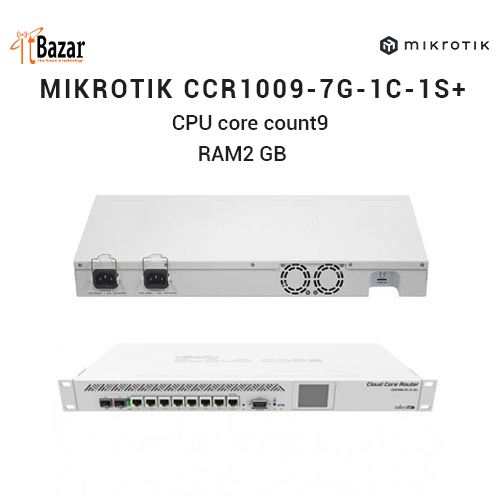

Mikrotik Router CCR1009-7G-1C-1S+
Inhouse product
Mikrotik Router CCR1009-7G-1C-1S+
1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6
Specifications
Details
Product code CCR1009-7G-1C-1S+
Architecture TILE
CPU TLR4-00980
CPU core count 9
CPU nominal frequency 1.2 GHz
Dimensions 443 x 175 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes
Suggested price $545.00
Powering
Details
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 1 (PoE-IN)
Frequency (Hz) 47-63
Max power consumption 39 W
Max power consumption without attachments 34 W
Cooling type 2 fans
PoE in Passive PoE
PoE in input Voltage 15-57 V
Ethernet
Details
10/100/1000 Ethernet ports 7
Ethernet Combo ports 1
Fiber
Details
SFP+ ports 1
Peripherals
Details
Number of SIM slots 1 Smart card (Mini SIM)
Memory card type microSD
Memory Cards 1
Serial console port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1
Other
Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
