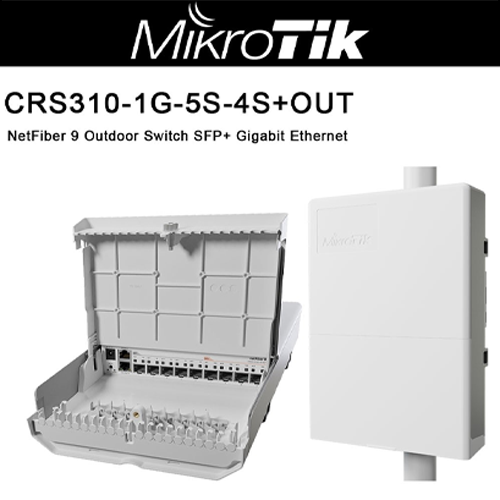

MikroTik netFiber 9 CRS310-1G-5S-4S+OUT Outdoor Fibre Switch

The netFiber 9 is a robust outdoor switch that includes SFP, SFP+, and Gigabit Ethernet ports. It has an ARM v7 CPU, 256 MB of RAM, 4x 10G SFP+ ports, and a Marvell switch-chip that can handle even the most demanding loads. The Gigabit Ethernet port is used for more than just management. It connects directly to the switch chip, allowing for full gigabit speeds. This port also supports PoE-in, which means you won't have to rely on the DC jack for powering in tight, difficult-to-reach spots.

For that sweet 10 Gbps networking, there's a console port, followed by five regular SFP ports and four SFP+ ports. This implies you'll probably have a lot of cables to manage at some point. That's why we included some useful extra features on the bottom of the case to help you keep things neat and tidy.

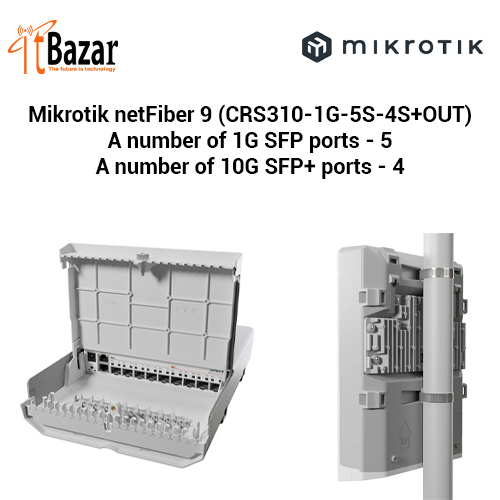

In dusty environments with occasional splashes of water, the robust case provides considerable protection.On the back, there's a large heatsink that serves two purposes.With all of the mounting choices, it not only provides excellent heat dissipation, but it also pushes the centre of mass to the side, keeping the board firm and strong throughout installation.Metal hose clamps and screws are included in the packaging, allowing you to quickly attach the netFiber to a pole, wall, or mast.

netFiber 9 is a fantastic tool for anyone who has to work with connections longer than 100 metres while minimising data loss and ping. If you're concerned about electromagnetic interference, tampering, or eavesdropping, optical fibre can be a great alternative to copper. NetFiber 9 is a real bargain with 10 ports, a strong CPU, and a rugged case that will make network management a breeze!

MikroTik netFiber 9 Outdoor Fibre Switch Key Features

Multiple Powering Options

IP54 Rated Outdoor Enclosure

Light Routing Capabilities

MikroTik netFiber 9 Outdoor Fibre Switch - Technical Specifications

General

Product code: CRS310-1G-5S-4S+OUT

Architecture: ARM 32bit

CPU: 98DX226S

CPU core count: 1

CPU nominal frequency: 800 MHz

RouterOS license: 5

Operating System: RouterOS

Size of RAM    256 MB

Storage size: 16 MB

Storage type: FLASH

MTBF: Approximately 200'000 hours at 25C

Tested ambient temperature: -40°C to 70°C

CPU temperature monitor: Yes

Voltage Monitor: Yes

Powering

Number of DC inputs: 2 (PoE-IN, DC jack)

DC jack input Voltage: 18-57 V

Max power consumption: 16.3 W

Max power consumption without attachments: 10 W

FAN count: Passive

PoE in: 802.3af/at

PoE in input Voltage: 18-57 V

Ethernet

10/100/1000 Ethernet ports: 1

Fiber

SFP ports: 5

SFP+ ports: 4

Certifications

Certification: CE, EAC, ROHS

IP: IP54

Package Contents

48 V 0.95 A power adapter

Gigabit PoE injector

K-66 fastening set

Hose clamp 2:
