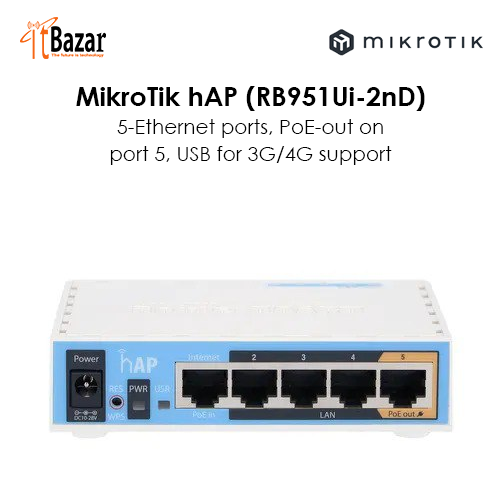

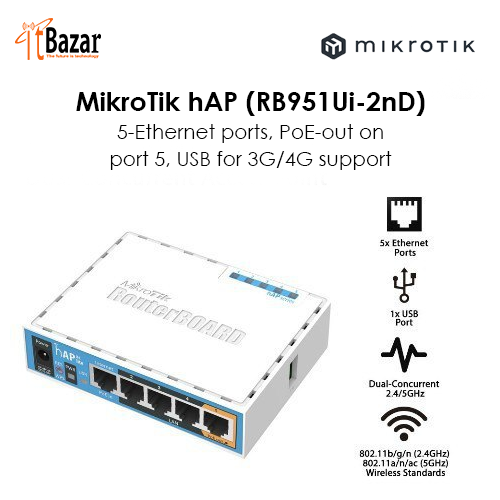

MikroTik hAP (RB951Ui-2nD) Router

2.4GHz AP, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support

This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.

The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.

hAP provides PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.

Specifications

Details

Product code RB951Ui-2nD

Architecture MIPSBE

CPU QCA9531

CPU core count 1

CPU nominal frequency 650 MHz

Switch chip model QCA9531

Dimensions 113 x 89 x 28mm

RouterOS license 4

Operating System RouterOS

Size of RAM 64 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -30°C to 70°C

Suggested price $45.00

Wireless capabilities

Details

Wireless 2.4 GHz Max data rate 300 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 1.5

Wireless 2.4 GHz chip model QCA9531

Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details

10/100 Ethernet ports 5

Peripherals

Details

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 10-28 V

Max power consumption 5 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 10-28 V

PoE-out

Details

PoE-out ports Ether5

PoE out Passive PoE

Max out per port output (input 18-30 V) 500 mA

Max total out (A) 500 mA

Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

IP IP20

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s 22 -96

11MBit/s 22 -89

6MBit/s 20 -93

54MBit/s 18 -74

MCS0 20 -93

MCS7 16 -71
