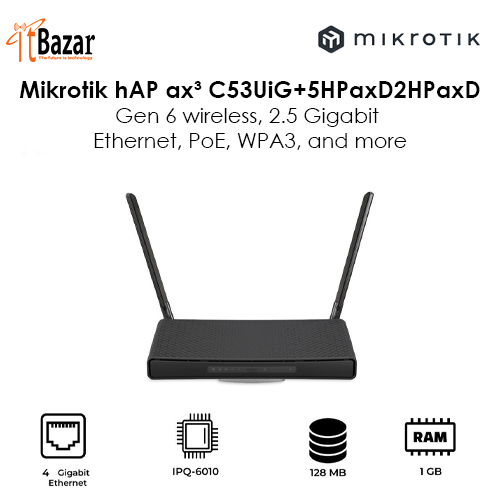

Mikrotik hAP ax³ C53UiG+5HPaxD2HPaxD

Gen 6 wireless, 2.5 Gigabit Ethernet, PoE, WPA3, and more!

hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

AX wireless – as strong as an ox

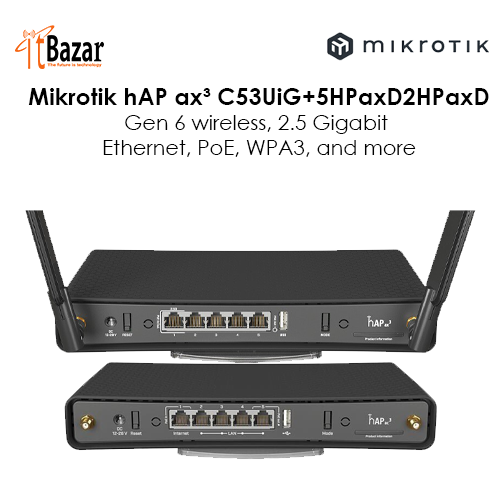

Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.

Safer in many ways

hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, our famous Nordic work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.

To sum things up - hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.

Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything. Do you really have the time to wait? Grab a hAP ax³ and save more time for the essential things in life.

Specifications

Details

Product code C53UiG+5HPaxD2HPaxD

Architecture ARM 64bit

CPU IPQ-6010

CPU core count 4

CPU nominal frequency auto (864 - 1800) MHz

Switch chip model IPQ-6010

RouterOS license 6

Operating System ros

Size of RAM 1 GB

Storage size 128 MB

Storage type NAND

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C

IPsec hardware acceleration Yes

Suggested price $139.00

Wireless capabilities

Details

Wireless 2.4 GHz Max data rate 574 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz 3.3

Wireless 2.4 GHz chip model QCN-5022

Wireless 2.4 GHz generation Wi-Fi 6

Wireless 5 GHz Max data rate 1200 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac/ax

Antenna gain dBi for 5 GHz 5.5

Wireless 5 GHz chip model QCN-5052

Wireless 5 GHz generation Wi-Fi 6

WiFi speed AX1800

Ethernet

Details

10/100/1000 Ethernet ports 4

Number of 1G Ethernet ports with PoE-out 1

Number of 2.5G Ethernet ports 1

Peripherals

Details

Number of USB ports 1

USB Power Reset Yes

USB slot type USB 3.0 type A

Max USB current (A) 1.5

Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-28 V

Max power consumption 38 W

Max power consumption without attachments 15 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 18-28 V

PoE-out

Details

PoE-out ports Ether 1

PoE out Passive PoE

Max out per port output (input 18-30 V) 0.625 A

Max total out (A) 0.625 A

Total output current 0.625

Total output power 15

Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

IP 20

Other

Details

CPU temperature monitor Yes

Mode button Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s 27 -100

11MBit/s 27 -94

6MBit/s 29 -96

54MBit/s 27 -80

MCS0 29 -96

MCS7 26 -75

MCS9 24 -70

MCS11 22 -67

5 GHz Transmit (dBm) Receive Sensitivity

6MBit/s 28 -96

54MBit/s 26 -80

MCS0 28 -96

MCS7 25 -75

MCS9 23 -70

MCS11 20 -67
