Mikrotik Groove 52 Dual Band Outdoor Router

2.4GHz/5GHz Backbone/CPE, N-male connector

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power!

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

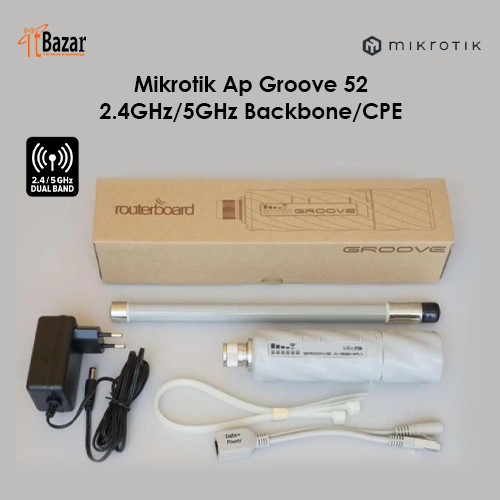

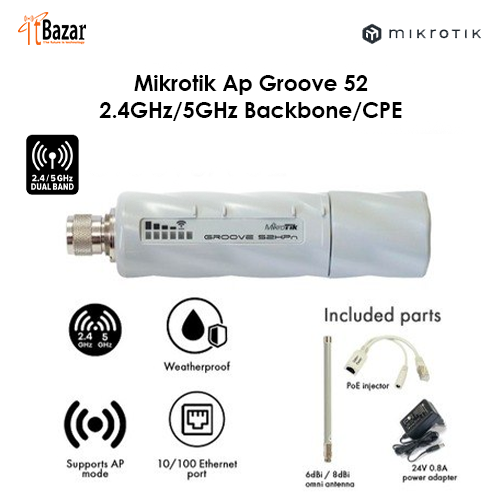

Box contains: Groove unit, mounting loops, PoE injector and power adapter

We have two versions available.

-Groove 52-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- Groove 52 (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details

Product code RBGroove52HPn

Architecture MIPSBE

CPU AR9342

CPU core count 1

CPU nominal frequency 600 MHz

Dimensions 180x49x44mm, 193g

RouterOS license 3

Operating System os

Size of RAM 64 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 70°C

Suggested price $59.00

Powering

Details

Number of DC inputs 1 (PoE-IN)

Max power consumption 6 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 9-30 V

Wireless specifications

Details

Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s

Wireless 2.4 GHz/5 GHz number of chains 1

Wireless 2.4 GHz/5 GHz standards 802.11a/b/g/n

Wireless 2.4 GHz/5 GHz chip model AR9342

Wireless 2.4 GHz/5 GHz generation Wi-Fi 4

Ethernet

Details

10/100 Ethernet ports 1

Other

Details

PCB temperature monitor Yes

Voltage Monitor Yes

Beeper Yes

Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity

1MBit/s 27 -97

11MBit/s 27 -91

6MBit/s 27 -93

54MBit/s 24 -75

MCS0 27 -93

MCS7 23 -70

5 GHz Transmit (dBm) Receive Sensitivity

6MBit/s 27 -93

54MBit/s 23 -75

MCS0 26 -93

MCS7 22 -70
