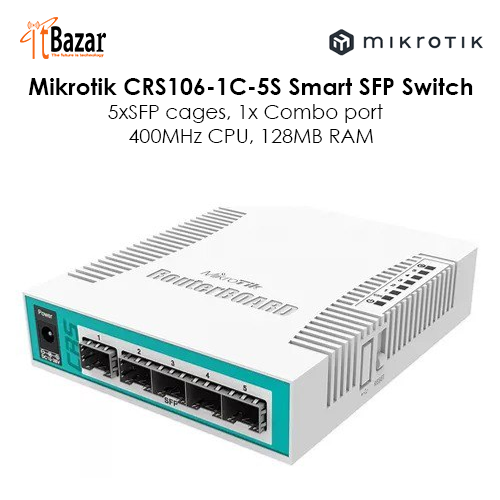

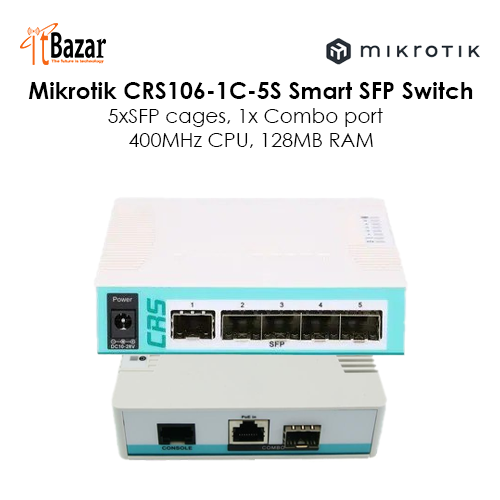

Mikrotik CRS106-1C-5S Smart Switch
Inhouse product
Mikrotik CRS106-1C-5S Smart Switch
Smart Switch, 5x SFP cages, 1x Combo port (SFP or Gigabit Ethernet), 400MHz CPU, 128MB RAM, desktop case, RouterOS L5
The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
Specifications Details
Product code CRS106-1C-5S
Architecture MIPSBE
CPU QCA8511
CPU core count 1
CPU nominal frequency 400 MHz
Switch chip model QCA8511
Dimensions 114 x 137 x 29mm
RouterOS license 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -20°C to 70°C
Suggested price $59.00
Powering
Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 11-30 V
Max power consumption 11 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 11-30 V
Ethernet
Details
Ethernet Combo ports 1
Fiber
Details
SFP ports 5
Peripherals
Details
Serial console port RJ45
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
