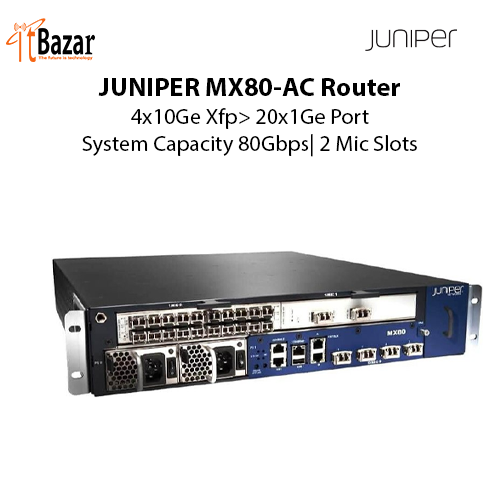

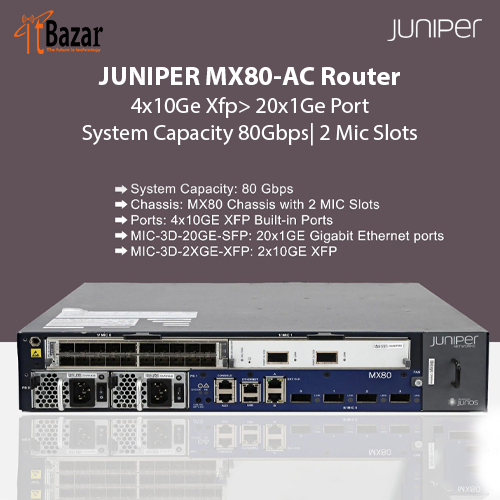

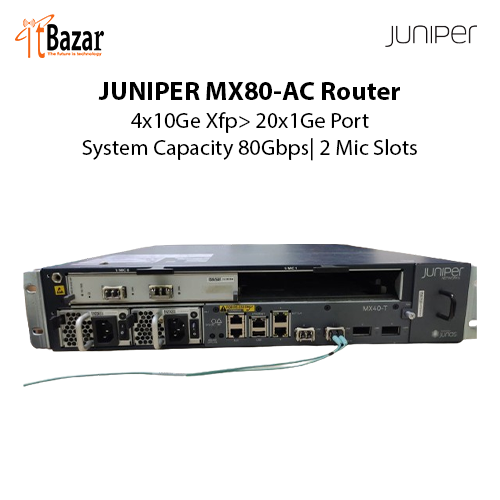

Juniper MX80  Universal Edge Router  Rack-mountable (MX80-AC)

The continuous expansion of mobile, video, and cloud-based services is disrupting traditional networks and impacting the businesses that rely on them. While annual double-digit traffic growth requires massive resource investments to prevent congestion and accommodate unpredictable traffic spikes, capturing return on that investment can be elusive. Emerging trends such as 5G mobility, Internet of Things (IoT) communications, and the continued growth of cloud networking promise even greater network challenges in the near future. The Juniper Networks MX Series 5G Universal Routing Platform delivers the industry's first end-to-end infrastructure security solution for enterprises as they look to move business-critical applications to public clouds. Delivering features, functionality, and secure services at scale in the 5G era with no compromises, the MX Series is a critical part of the network evolution happening now.

Device Type Router

Enclosure Type Rack-mountable - modular - 2U

Connectivity Technology Wired

Performance Switching capacity: 80 Gbps

Routing Protocol BGP, GRE

Remote Management Protocol SNMP 2, SNMP 3, HTTP

Features VPN support, MPLS support, manageable, Quality of Service (QoS)

Compliant Standards ETSI, EN 60950, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, CSA C22.2 No. 60950-00, EN 61000-4-5, UL 1950 Third Edition, EN 61000-4-11, RoHS, FCC Part 15 A, NEBS, EN 60825-1, AS/NZS 3548 Class A

Interfaces Management: 1 x console - RJ-45 ¦ Management: 1 x 10Base-T/100Base-TX - RJ-45 ¦ USB: 1 x ¦ 1 x auxiliary - RJ-45

Expansion Slots 2 (total) / 2 (free) x Modular Interface Card (MIC) ¦ 4 (total) / 4 (free) x XFP

Installed Modules Qty (Max) 2 (installed) / 2 (max)

Power Device Internal power supply

Power Redundancy Yes

Installed Qty 1 (installed) / 2 (max)

Voltage Required AC 120/230 V

Power Consumption Operational 376 Watt

Width 17.5 in

Depth 23.5 in

Height 3.5 in

Weight 30.2 lbs

Min Operating Temperature 32 °F

Max Operating Temperature 104 °F

Humidity Range Operating 5 - 90% (non-condensing)
