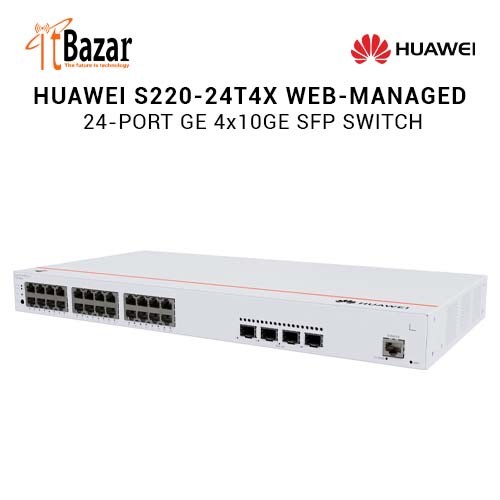

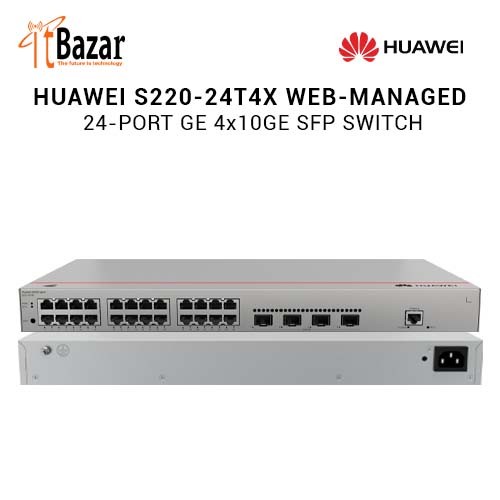

HUAWEI SWITCH S220-24T4X WEB-MANAGED 24-PORT GE 4x10GE SFP SWITCH

The Huawei S220-24T4X is a managed switch from the eKitEngine series. It is equipped with 24 gigabit Ethernet ports (10/100/1000 Mbps) and 4 SFP+ slots (10 Gbps). It supports Layer 2 management, including protocols like STP (STP/RSTP/MSTP) and ERPS (Ethernet Ring Protection Switching). It provides high network security, supporting various types of authentication (based on MAC address or 802.1X) and is protected against various external attacks. You can manage the device using Web UI, CLI, or SNMP. Additionally, it supports cloud management and the Huawei eKit application. The S220-24T4X has a built-in AC power supply, with a maximum power consumption of 35.04 W. It utilizes active cooling with intelligent fan speed adjustment. The device is suitable as an advanced access switch in locations where you don't need PoE or as the main switch in smaller networks.

Specifications

Huawei S220-24T4X

Switching Capacity 128 Gb/s

Packet forwarding 95 Mp/s

Fixed port 24x gigabit Ethernet 10/100/1000 Mb/s

4x SFP+ (10 Gb/s)

Chassis dimensions (H x W x D) 43.6 mm x 442 mm x 220 mm

Chassis height 1U

Weight 3,44 kg

Power module type Built-in AC power module

Rated voltage 100 - 240 V AC, 50/60 Hz

Maximum voltage 90 - 29 V AC, 45/65 Hz

Maximum power consumption 35,04 W

Noise Sound power at normal temperature: 47 dB (A)

Sound power at high temperature: 51 dB (A)

Long-term operating temperature –5°C to +50°C

Storage temperature –40°C to +70°C

Relative humidity 5% to 95% (noncondensing)

Service port surge protection Common mode: ±10 kV

Power port surge protection Differential mode: ±6 kV

Common mode: ±6 kV

Heat dissipation mode Air cooling, intelligent fan speed adjustment

Service features

MAC address table Automatic MAC address learning and aging

16K MAC address entries at maximum

Static, dynamic, and blackhole MAC address entries

Source MAC address filtering

Limitation on the number of MAC addresses learned by an interface

VLAN features 4094 VLANs

Voice VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

VLAN stacking

Ethernet switching G.8032 Ethernet Ring Protection Switching (ERPS)

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

BPDU tunnel

Multicast IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping

Reliability Link Aggregation Control Protocol (LACP)

Link Layer Discovery Protocol (LLDP)

QoS/ACL Traffic rate limiting in the inbound and outbound directions of a port

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

DRR, SP, and DRR+SP queue scheduling algorithms

Re-marking of 802.1p and DSCP priorities for packets

Packet filtering on Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol, or VLAN

Security features Hierarchical user management and password protection

Defense against DoS, ARP, and ICMP attacks

Binding of the IP address, MAC address, port ID, and VLAN ID

Port isolation, port security, and sticky MAC

Blackhole MAC address entries

Limitation on the number of learned MAC addresses

IEEE 802.1X authentication and limit on the number of users on an interface

Multiple authentication modes including AAA, RADIUS, HWTACACS and NAC authentication

SSH v2.0

HTTPS

CPU protection

Blacklist and whitelist

DHCP client and DHCP snooping

Management and maintenance Cloud management based on NETCONF/YANG

Virtual cable test (VCT)

Remote configuration and maintenance by using Telnet

SNMPv1/v2/v3

Web system-based management

HTTPS

LLDP/LLDP-MED

System logs and alarms based on severities

IEEE 802.3az: Energy Efficient Ethernet (EEE)

Port mirroring

Deployment through the registration query center
