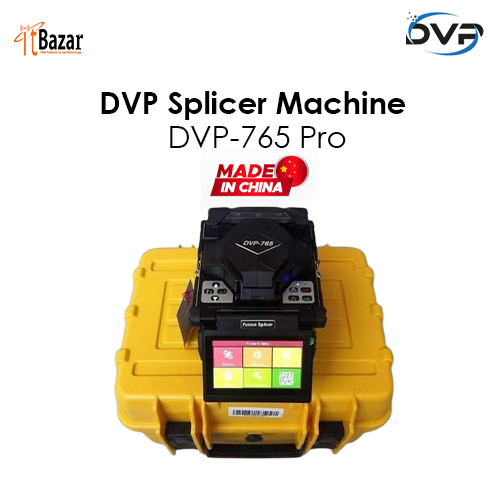

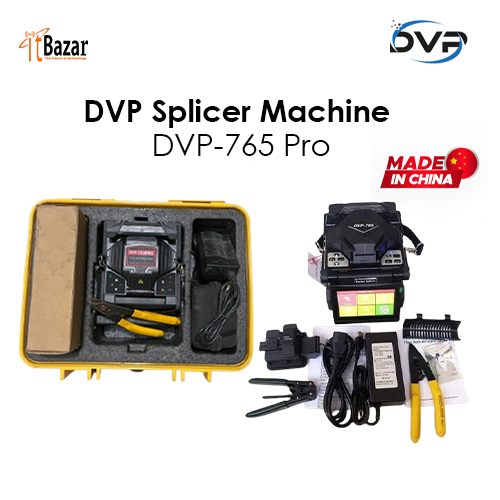

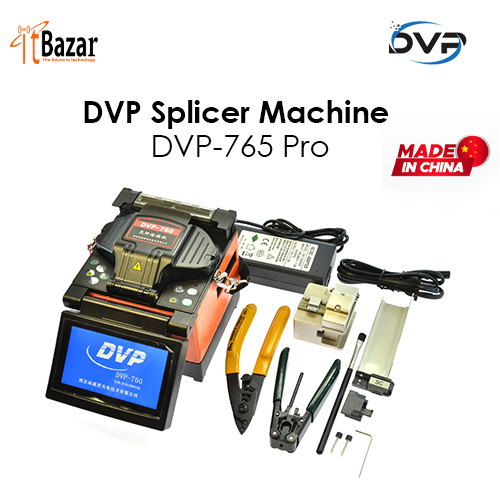

DVP Splicer 765 Pro Fusion Splicer
Inhouse product
DVP Splicer 765 Pro Fusion Splicer (ডিভিপি স্প্লাইসার ফাইবার জয়েন্ট মেশিন )
Applicable Fibers:SMF(G.652)、MMF(G.651) 、DSF(G.653) 、NZDSF(G.655)、BIF(G.657）
Core Quantity:Single
Typical Splice Loss:0.02dB(SMF)、0.01dB(MMF)、0.04dB(DSF)、0.04dB(NZDSF)、0.02dB(BIF)
Return Loss:≥60dB
Tension Test:2.0N（200gf）Standard
Material of Fiber Core:Quartz Fiber
Fiber Diameter:Cladding Diameter: 80-150 µm; Coating Diameter: 100 µm~3mm
Cleaved Length:8~16mm
Lighting:Available
Estimated Splice Loss:Available
Splicing Time:7 sec
Tube-heat Time:20 sec
Fiber View & Magnification:X, Y, X/Y; 300X Magnification
Alignment:Core-Alignment, Cladding-Alignment, Auto
Electrode Life:5000 arcs, can be extended by using an electrode grinder
Protection Sleeve Length:20-60 mm, and other special sleeves
Splicing Program:6 modes factory preset, 74 user-defined
Heating Program:6 modes factory preset, 14 user-defined
Auto Heat:Yes
Data Storage:8000 results, 200 splice images
Language:Chinese, English
Operating Environment: Temperature：-25～＋50℃； Humidity：0～95%RH：Altitude：0～5000m； Wind Protection：Max. wind velocity of 15m/s
Storage Temp:Temperature：-40～+80℃；Humidity：0～95%RH
Power Supply:AC Adapter：Input Voltage:85～260V, 50/60Hz Battery：Voltage:12V，Capacity:6.5Ah
Battery Power:260 times splicing and heating
Data Management:Can upload the result and screenshot to PC
Display:4.3 color LCD
Dimension/Weight:152（D）×142（W）×145（H）mm 1.57kg/1.98kg(with battery)
