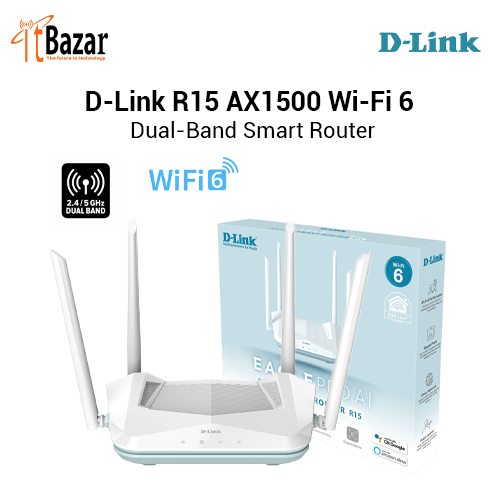

DLink R15 AX1500 WiFi6 DUAL BAND GIGABIT SMART ROUTER

Wi-Fi 6 (802.11ax) technology provides faster speeds, greater capacity

and less network congestion

• Next-generation speeds up to 1.5 Gbps (300 + 1201) built for the

modern device-dense smart home

• Dual-band Wi-Fi makes 4K streaming, gaming and video chatting a

breeze

•3 Gigabit Ethernet LAN ports and 1 Gigabit Ethernet WAN port provide

optional wired connectivity

• D-Link Wi-Fi Mesh lets you add other compatible EAGLE PRO AI Series

to expand your network as you wish

• BSS coloring helps organize data packets, making your network more

efficient and improving overall Wi-Fi 6 performance

• Mesh Smart Roaming technology auto connects you to the strongest

signal

• Voice Control for an even easier home Wi-Fi networking experience

•Free EAGLE PRO AI app

General

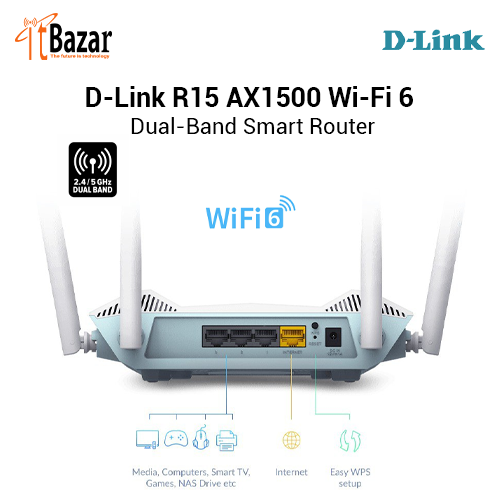

Device Interfaces 3 x Gigabit Ethernet LAN ports, 1 x Gigabit Ethernet WAN port, 1 x WPS button, 1 x power connector

LED Power, Internet, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi

Antenna Type Four external antennas

Wi-Fi Data Rate 2.4 GHz Up to 300 Mbps1

, 5 GHz Up to 1201 Mbps1

IEEE Standard IEEE 802.11ax/ac/n/g/b/k/v/a/h, IEEE 802.3u/ab

Minimum Requirements Windows 10/8.1/8/7/Vista or Mac OS X 10.6 or higher, Supports Internet Explorer 10/Firefox 28.0/Chrome

28.0/Safari 6.0 and up, Network Interface Card, Cable/DSL modem or other ISP

equipment with Ethernet port

WAN Interface Static IP, Dynamic IP, PPPoE, PPTP, L2TP, DS-Lite, Support 802.1p & 802.1q

VLAN tagging and Priority bit, Concurrent session: 30000

Functionality

Security Protocol WPA2 (Wi-Fi Protected Access), WPA3(Wi-Fi Protected Access), WPS (Wi-Fi Protected Setup)

Firewall DoS, SPI, Anti-spoofing Checking, IP Address, 1x DMZ

Mesh D-Link Wi-Fi Mesh

QoS D-Link Intelligent QoS Technology

Software

Device Management EAGLE PRO AI app (iOS and Android), Web UI

Voice Assistants Amazon Alexa, Google Assistant

Physical

Dimensions L: 195 mm (7.68 in)

W: 139 mm (5.47 in)

H: 55 mm (2.17 in)

Weight 300 g

Power Adapter 12V/1A

Operating Temperature 0 to 40 °C (32 to 104 °F)

Storage Temperature -20 to 65 °C (-4 to 149 °F)

Operating Humidity 10% to 90% non-condensing

Storage Humidity 5% to 95% non-condensing

Certifications CE , FCC, IC

Ordering Information

R15 AX1500 Smart Router
