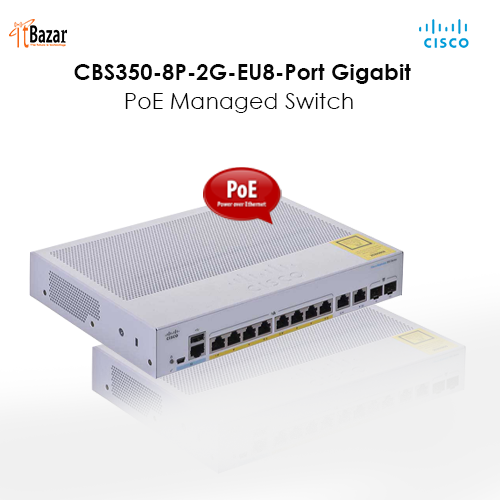

CISCO CBS350-8P-2G-EU 8-Port Gigabit PoE Managed Switch
Inhouse product
CISCO CBS350-8P-2G-EU 8-Port Gigabit PoE Managed Switch
10-port Gigabit Ethernet PoE Managed Switch CISCO CBS350-8P-E-2G-EU
- Support 8 Gigabit PoE+ ports with 67W power budget and 2 Gigabit copper/SFP combo ports.
- Switching Capacity: 20Gbps.
- Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes.
- MAC table: 16K addresses.
- Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T.
- Flash: 256MB.
- CPU: 800MHz ARM.
- DRAM: 512MB.
- Dimensions (W x D x H): 268 x 185 x 44 mm.
- Weight: 1.53kg.
Model CBS350-8P-E-2G-EU
Performance
Capacity in millions of packets per second (mpps) (64-byte packets) 14.88 mpps
Switching capacity 20Gbps
General
Jumbo frames Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table 16K addresses
Hardware
Total System Ports 10 x Gigabit Ethernet
RJ-45 Ports 8 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) 2 x Gigabit Ethernet combo
Number of Ports That Support PoE 8
Power Dedicated to PoE 60W
Console port Cisco standard mini USB Type-B/RJ45 console port
USB slot USB Type-A slot on the front panel of the switch for easy file and image management
Buttons Reset button
Cabling type Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs System, Link/Act, PoE, Speed
Flash 256 MB
CPU 800 MHz ARM
DRAM 512 MB
Packet buffer 1.5 MB
Power consumption (worst case)
System Power Consumption 110V=13.84W
220V=14.31W
Power Consumption (with PoE) 110V=80.79W
220V=80.86W
Heat Dissipation (BTU/hr) 275.91
Environmental
Unit dimensions (W x D x H) 268 x 185 x 44 mm
Unit weight 1.53 kg
Power 100-240V 50-60 Hz, external
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature -5° to 50°C
Storage temperature -25° to 70°C
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failure (MTBF)
FAN (Number) Fanless
MTBF at 25°C (hours) 1,706,649
