CDATA EXPANDABLE OLT FD1700S

Easily Adapting to Changing Network Requirements, Preventing Unnecessary Expenses on Unused Features

FD1700S offers unparalleled flexibility and excellent scalability.

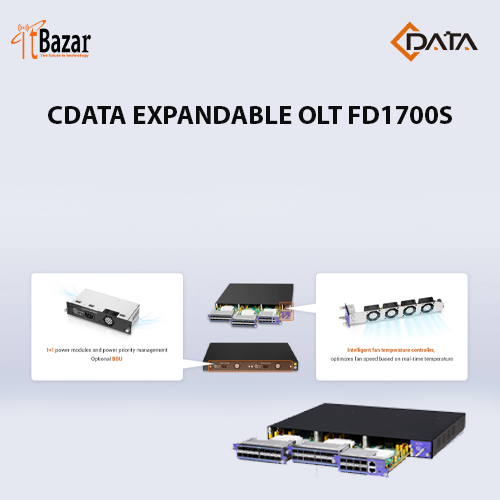

Supporting 2 pluggable slots with 4 various choices, it tailors solutions for every need, seamlessly integrating into existing networks, effortlessly bridging the present and the future.

Aligned with ITU-T G.984.x and FSAN Standards

Full-service support encompassing Voice, Ethernet Access, Wi-Fi, HD Video, Security Defense, etc.

Remote data transmission without compromise.

Shared Private OAM/OMCI Definitions, ensuring incredible compatibility.

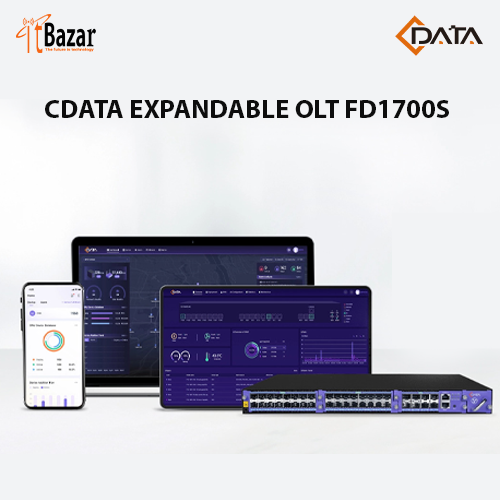

The Integrated Management System

FD1700S offers versatile operation through CLI, WEB, Telnet, and SSH. C-Data's OLT WEB3.0 and CMS provide users, enterprises, and operators with a secure, efficient, and intelligent network operation and maintenance platform. This platform achieves efficient, stable, and swift management and operation, significantly enhancing overall efficiency.

SPECIFICATIONS

Model FD1700S

Management Rack 1U 19-inch standard box

Dimensions 440*375*44mm

Uplink Port 4* 1G(SFP)/10G SFP+

4* 10G(SFP+)/25G(SFP 28)

PON Port

Quantity: 4*GPON/8*GPON/16*GPON/8*XG(S)PON

Physical interface: SFP

Interface type: GPON: ITU-TG.984.2 Class B+/Class C+

Max splitting ratio: GPON: 1:128

Management Port 1* 100/1000BASE-Tx out-band Ethernet port

1* CONSOLE local management port

Backplane Bandwidth 400G

RELATED PRODUCTS

ITEM


FD1700S

Specifications

4*1G(SFP)/10G SFP+; 4*10G(SFP+)/25G(SFP28)

2*Optional pluggable slots: 4*GPON/8*GPON/16*GPON/8* XG(S)PON

Rack Type 1U 19-inch standard box

Uplink Port

4*1G(SFP)/10G SFP+

4*10G(SFP+)/25G(SFP28)

PON Port Quantity 4*GPON/8*GPON/16*GPON/8*XG(S)PON

Physical interface SFP

Interface type GPON: ITU-TG.984.2 Class B+/Class C+

Max splitting ratio GPON: 1:128

Management Port 1 100/1000BASE-Tx out-band Ethernet port

1 CONSOLE local management port

PON Port attribute Transmission distance 20KM

Port rate GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps

Wavelength

Forwarding: 1490nm

Receiving: 1310nm

Interface type SC/UPC

Fiber type 9/125μm SMF ((Single Mode Fiber)

Receiving sensitivity Class B+: -28dBm  Class C+: -30dBm

Saturation power Class B+: -8dBm   Class C+: -12dBm

Backplane Bandwidth 400G

Size 440*375*44mm

Weight 6.0Kg

Power supply AC 100V~240V，47~63Hz

DC -40V~-72V

Working environment Working temperature -15～50℃

Storage temperature -40～85℃

Humidity 5～90% (Non-condensing)
