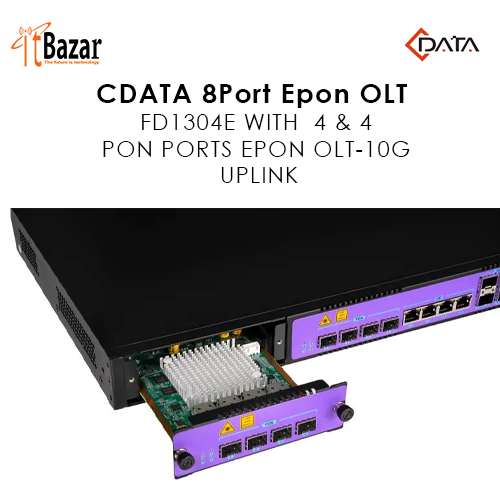

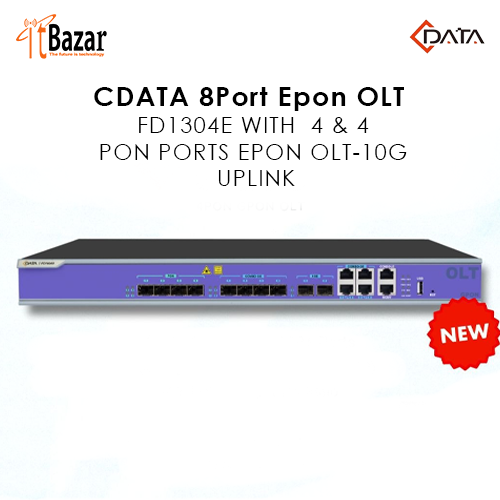

CDATA 8Port Epon OLT  FD1304E WITH  4 & 4 PON PORTS EPON OLT-10G UPLINK সি ডাটা ৮পোর্ট ইপন OLT,১০জি আপলিংক

EPON OLT FD1304E-B1completely meet relative standard of IEEE 802.3x andFSAN,which is 1U rack-mounted device 4 uplink GE ports, 4*10GE uplink ports, 4fixedEPONports and 4 optional EPON ports.Each EPON port supports the splitting ratioof 1:64,TheGPON system supports up to 512 terminal connections。

This product meets the requirements in device performance and sizeof compactserver room as the product has high performance and compact size, which convenient andflexible to use, and is easy to deploy as well. Moreover, the product meetstherequirements of promoting network performance, improving reliability and reducingpowerconsumption in the perspective of access network and enterprise networkandisapplicable to three-in-one broadcast television network, FTTP (Fiber to the premise), videomonitoring network, enterprise LAN (Local Area Network), internet of things andothernetwork applications with a very high price/performance ratio。

Functional Feature

 In compliant with IEEE802.3x Standard

 Support OAM Protocol

 1U height 4+4 PON OLT product in compact

design of Pizza-Box.(4 pluggable PON ports + 4

fixed PON ports)

 Fan speed adjust automatically

 Complete PON protection switching function

 Layer 2 Switching Function

OLT equips with very powerful layer 2 Full Wire

Speed Switching and completely supports layer 2

protocol. OLT supports varieties of layer 2 functions

like TRUNK, VLAN, LACP, rate limit, port isolate, queue technology, flow control technology, ACL

and so on, which provides technical guarantee for

the development of multi-service integrated.

 QOS Guarantee

 Support port-based rate limitation and bandwidthcontrol.  Support data encryption, group broadcasting, portVlan separation, RSTP, etc.  Support ONU auto-discovery/Link detection/remoteupgrade of software.  Easy-to-Use Management SystemSupport management method of CLI, WEB, SNMP, TELNET, SSH and meet OAMstandard, throughOAMchannel protocol service management can berealized,

including ONT function parameter set, Qosparameters, configuration information request, performance statistics, auto-reporting of runningevents in system, configuration for ONT fromOLT, faultdiagnosis and management of performance andsafety.
