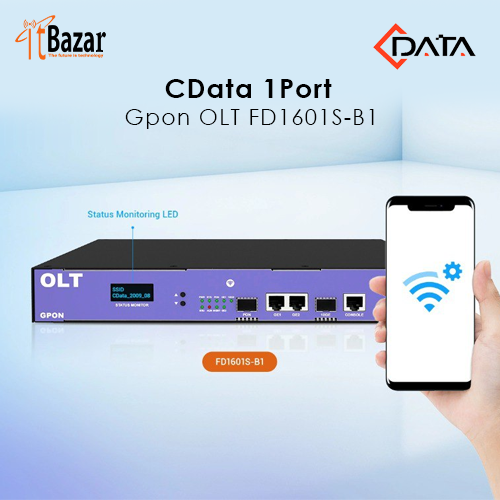

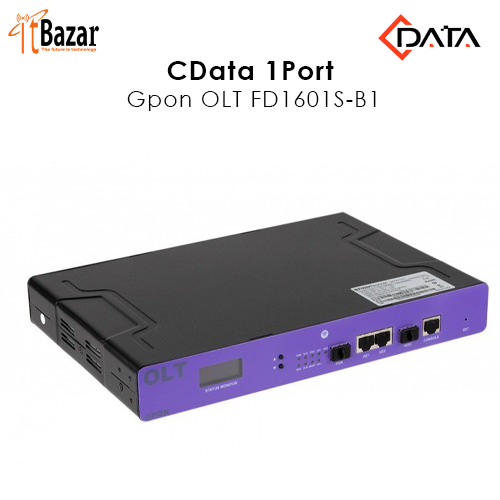

CData 1Port Gpon OLT FD1601S-B1
Inhouse product
CData 1Port Gpon OLT FD1601S-B1 সি ডাটা জীপন ও এল টি
1PON PORT GPON OLT
GPON OLT FD1601S-B1 completely meet relative standard of ITU G.984.x and FSAN, the device with 2 uplink Ethernet ports and 1 10 Gigabit uplink port and 1 GPON port.Each GPON port supports the splitting ratio of 1:128, The GPON system supports up to 128 terminal connections.
C-Data Mini GPON OLT
-Status Monitor LED
-Built in WIFI for OLT Access
-Cost Effective
-Third-Party ONU Compatibility
-2*10/100/1000M Ethernet port
-1*10GE SFP + port
-Optional support for BBU
Technical Specifications
Mechanics
Dimensions 290mm(L)*192mm(W)*40mm(H)
Weight 1.50Kg
Hardware
Uplink Port 2 10/100/1000M auto-negotiation Ethernet ports
10 Gigabit uplink port
PON Port Quantity 1
Physical interface SFP slot
Interface type GPON: ITU-TG.984.2 Class B+/Class C+
Max splitting ratio GPON: 1:128
Management Port 1 CONSOLE local management port
PON Port attribute Transmission distance 20KM
Port rate GPON: Downstream: 2.5Gbps Upstream: 1.25Gbps
Wavelength Forwarding: 1490nm Receiving: 1310nm
Interface type SC/UPC
Fiber type 9/125μm SMF (Single Mode Fiber)
Light transmission power Class B+ +1.5 ~ +5dBm Class C+ +3 ~ +7dBm
Receiving sensitivity Class B+ : -28dBm Class C+ : -30dBm
Saturation power Class B+ -8dBm Class C+ -12dBm
Backplane Bandwidth 27.75G
Power supply
AC 100V ~ 240V，47~63Hz
DC External adapter mode 12V/2.5A
Environment
Working temperature -15 ~ 50℃
Storage temperature -40 ~ 85℃
Ambient humidity 5 ~ 90% (Non-condensing)
