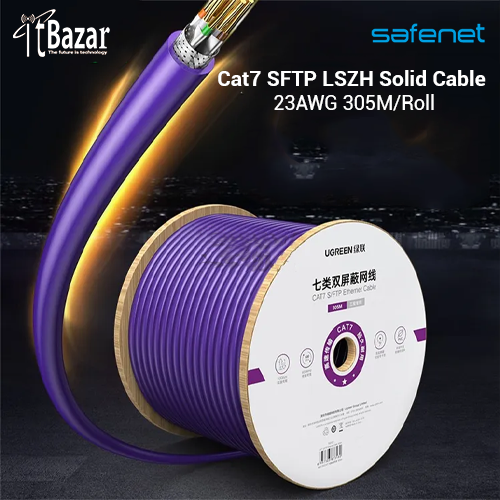

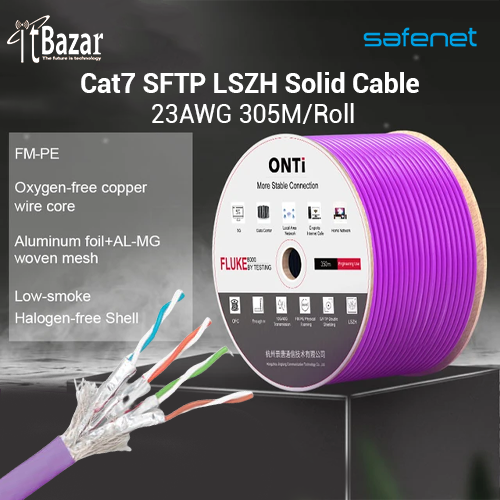

Cat7 SFTP LSZH Solid Cable 23AWG 305M/Roll
Inhouse product
Cat7 SFTP LSZH Solid Cable 23AWG 305M/Roll ক্যাট -৭ এস.এফ.টি. পি ক্যাবল
Cat7 SFTP LSZH Solid Cable (each pair with foil shielded and then overall 4 pairs with Mg-Al Alloy braiding), 0.57mm, PVC, 23AWG - 305M/Roll
These Safenet Cat-7 cables are made of high quality copper wire size AWG23. Its pairs are separated by a plastic cross that can be labeled one meter each. It also features 23 AWG solid-bare copper conductors, up to 600MHz. It is 4 pairs with tested LSZH outer jacket ROHS compliant and UL approved, DELTA, GHMT Print, identifying footage from 305M to 001M.
Conductor Diameter: 0.57mm ± 0.008mm
Foam PE Insulation: 1.34mm ± 0.03 mm
Braiding: 16 x 6 x 0.12mm ALMG
Drain Wire: 1 x 0.4 tinned copper
Outer Jacket Thickness: 0.5mm±0.5mm
External Diameter: 7.9mm±0.5mm
Linear Resistance: Max.<85>
Mutual Capacity: 5.6nF/100M
Unbalance Capacity Max: 1600 pF/km
Characteristic Impedance: 100 ±15Q
Velocity Of Propagation: 74%
Copper Conductor: 23 AWG Solid-Bare
Token Ring: 4 / 16 Mb / s
ANSI / TIA: 568-C.2:2009
TIA / EIA: 568B.2-2001
Compliant
EN50173
EN50288-4-1
ISO / IEC11801
ISO / IEC61156-5
