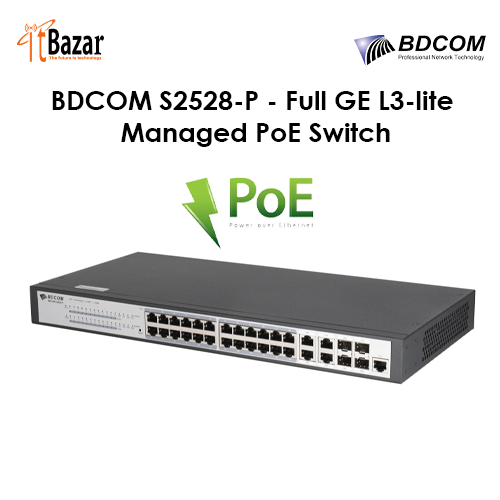

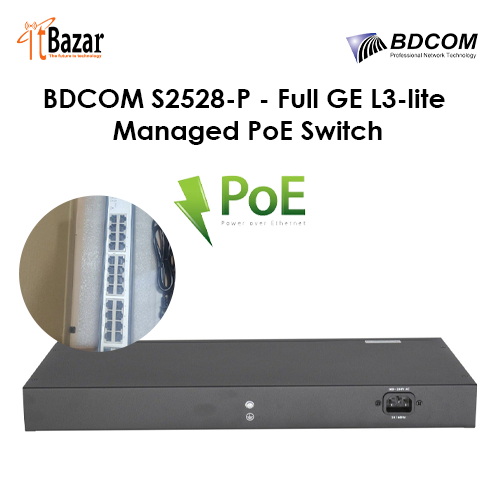

BDCOM S2528-P GIGABIT L3-lite Managed PoE Switch

এখানে আছে 24 টি গিগাবিট পোর্ট এবং 4 টি #SFP আপলিংক পোর্ট।

The BDCOM S2500 series of POE switches are a new generation of intelligent access switches launched by Shanghai Boda Data Communication Co., Ltd. for operators' premises and enterprise networks. The S2500 series is based on a new generation of high-performance hardware and BDROS software platform with independent intellectual property rights of BDCOM. It supports powerful ACL, QinQ, QoS and other functions, and supports three-layer routing protocols. Its simple and rich management methods and flexible installation methods make the The product can meet the access requirements of various complex scenarios.

Technical Parameters

project S2528-P

Port form 24 Gigabit POE ports

4 Gigabit Combo ports

Exchange capacity 336Gbps/3.36Tbps

Packet forwarding rate 51Mpps

Chassis size 440*210*44

Power consumption ＜20W

POE+ stand by

POE power 370W

power supply AC: 100V-240V, 50Hz±10%

DC: 36V-72V (2510P-DC model)

Environmental requirements Working temperature/humidity: -10℃-50℃, 10%-90% non-condensing

Storage temperature/humidity: -40℃-75℃; 5%-95% non-condensing

Mac swap Support static configuration and dynamic learning of MAC address

Support view and clear MAC address

Configurable MAC address aging time

Support MAC address learning limit

Support MAC address filtering function

Support IEEE 802.1AE MacSec security control

VLAN Support 4K VLAN table entries

GVRP Support

Support QinQ function

Private VLAN Support

Support voice vlan

Ring network protection Support 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

Support BPDU protection, root protection, loop protection

Support EAPS Ethernet link automatic protection protocol

ERPS support Ethernet ring network protection protocol

Multicast IGMP v1/v2/v3 support

IGMP Snooping Support

IGMP Fast Leave Support

Support multicast group policy and limit on the number of multicast groups

Supports cross-VLAN replication of multicast traffic

IP routing IPv4/IPv6 dual stack protocol support

Support static routing

Support RIP, OSPF dynamic routing

DHCP DHCP Server Support

DHCP Relay Support

DHCP Client Support

DHCP Snooping Support

ACL Supports Layer 2, Layer 3, and Layer 4 ACL

IPv4, IPv6 ACL support

VLAN ACL Support

QoS Support traffic classification based on each field of the L2/L3/L4 protocol header

Support CAR flow limit

Support 802.1P/DSCP priority re-marking

Support queue scheduling methods such as SP, WRR, SP+WRR, etc.

Support congestion avoidance mechanisms such as Tail-Drop and WRED

Support traffic monitoring and traffic shaping

Safety features Support L2/L3/L4 based ACL flow identification and filtering security mechanism

Support anti-DDoS attack, TCP SYN Flood attack, UDP Flood attack, etc.

Supports deletion of multicast, broadcast, and unknown unicast messages

Support port isolation

Support port security, IP+MAC+port binding

Support DHCP sooping, DHCP option82

IEEE 802.1x authentication support

Radius support, BDTacacs+ certification

Support command line hierarchical protection

reliability Static/LACP mode link aggregation support

Support UDLD unidirectional link detection

Ethernet OAM support

Support ISSU business uninterrupted system upgrade

Management and maintenance Console support, Telnet, SSH 2.0

ZTP Zero Touch Provisioning Support

Browser-based WEB management support

SNMP v1/v2/v3 support

Support file upload and download management in TFTP mode

Support RMON event history
