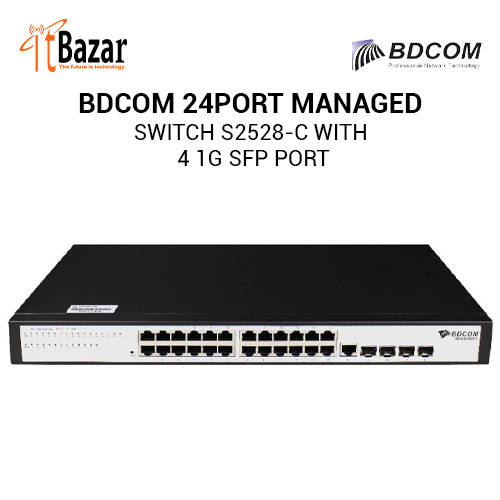

BDCOM 24PORT MANAGED SWITCH S2528-C WITH 4 1G SFP PORT
Inhouse product
BDCOM 24PORT MANAGED SWITCH S2528-C WITH 4 1G SFP PORT
Switch managed 24 ports 1000M TX, 4 100/1000M SFP ports
BDCOM S2500 series switches are a new generation of intelligent access switches launched by Shanghai Boda Data Communication Co., Ltd. for operators’ premises and enterprise networks. S2500 series is based on a new generation of high-performance hardware and proprietary Bardon BDROS software platform that supports strong ACL , QinQ , QoS and other functions, support for three routes, rich in its simple management, flexible mounting square type, so that the The product can meet the access requirements of various complex scenarios.
Main features
Carrier Ethernet Access Switch
Support carrier-class Ethernet ring network protection protocol, protection switching time <50ms ; support STP/RSTP protocol, dual uplink active and backup link protection, LACP link aggregation and other simple and efficient redundant protection mechanisms to meet the high reliability of users Requirements.
The powerful ACL function supports the access and control of L2~L7 layer data, and provides users with flexible and diverse policy control methods.
Support ISSU ( In- Service Software Upgrade ) business uninterrupted system upgrade to ensure the uninterrupted forwarding of user data during system upgrade.
Supports rich Layer 2 multicast functions, including IGMP-Snooping , user quick leave mechanism and cross- VLAN multicast replication function.
Model S2528-C
Interface 24 GE TX ports, 4 100/1000M SFP ports
Console 1 RJ45 ports, 1 RST button
Backplane 56 Gbps
Forwarding rate 42 Mpps
Chassis Dimensions (WxDxH) 440x210x44
Weight (KG) 2
Package Dimensions (WxDxH) 555x295x88
Weight (KG) 3
Power consumption no-load: <7W
full-load: 20W
Power supply 25W
Total output BTU (1000BTU/H=293W) 85.32
Fan number no
Noise@25 º C (dBA) 0
MTBF(H) >50,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size (MB) 4,1
Jumbo frame 9K
Total SVI 10
