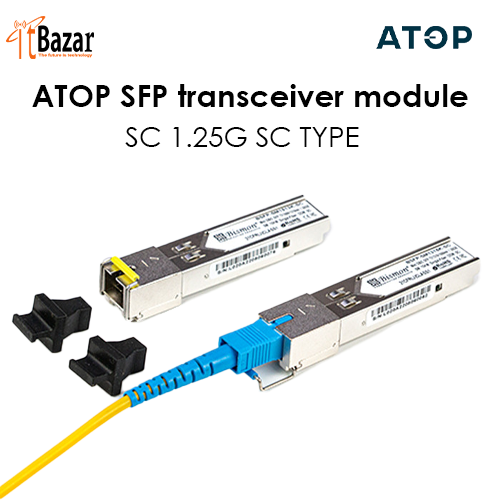

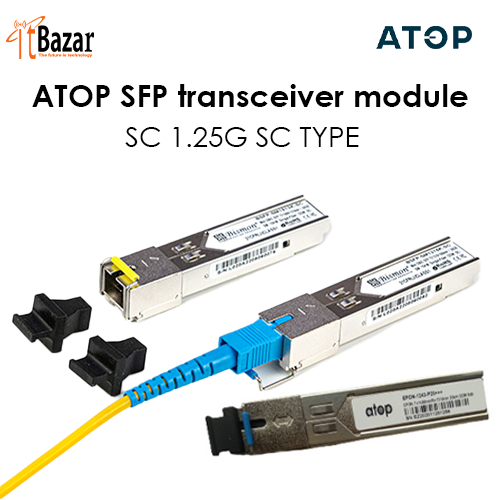

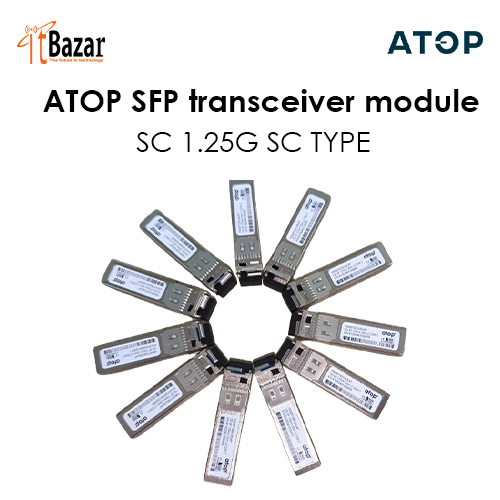

ATOP SFP transceiver 1.25G SC TYPE
Inhouse product
Description
ATOP-SC Transceivers are high-performance, cost-effective modules that have a single SC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 1.25GB distance 20km application.
Features
Up to 1.25Gb/s Data Links
Hot-Pluggable
Single SC connector
Up to 10 km on 9/125μm SMF
1310nm FP laser transmitter
1550nm PIN photo-detector
Single +3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
RoHS compliant and Lead Free
