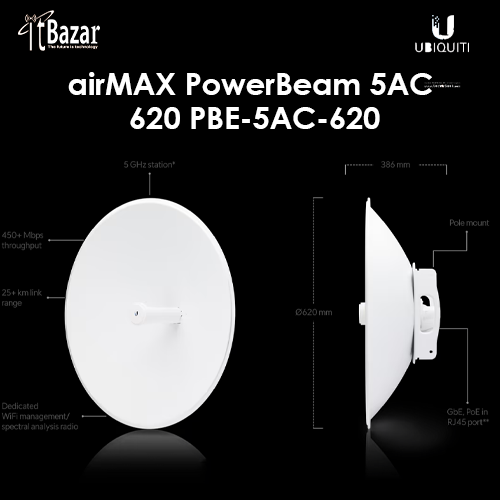

airMAX PowerBeam 5AC 620 PBE-5AC-620

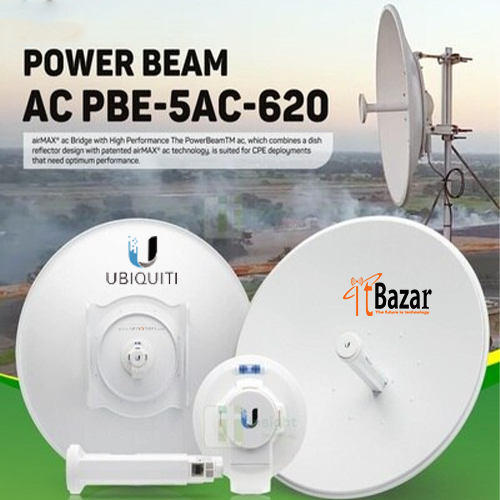

PBE-5AC-620 (2 Pack) The PBE-5AC-620 PowerBeam ac High-Performance airMAX Bridge from Ubiquiti Networks is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 450+ Mb/s and also offers wide range of 19+ mi (30+ km). The InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance while eliminating cable losses. Ubiquiti's airMAX engine with custom IC improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. 2-PACK PowerBeam AC 5GHz 29dBi Atheros MIPS 74Kc, 720 MHz Processor 620mm 450+Mbps 30+km High-Performance airMAX Bridge 128 MB DDR2, 8 MB Flash Memory 480+ Mb/s Transfer Speed 30+ Km Range airOS v7 Operating System Time Division Multiple Access (TDMA) InnerFeed Technology Multi-Radio Architecture Next Generation airMAX ac Technology Selectable Channel Width

Mechanical

Dimensions 620 x 620 x 386 mm (24.4 x 24.4 x 15.2")

Weight 6.4 kg (14.1 lb)

Enclosure material Outdoor UV-stabilized plastic

Mounting Pole mount kit (Included)

Wind loading Without radome: 1510 N at 200 km/h (340 lbf at 125 mph)

With radome: 1830 N at 200 km/h (411 lbf at 125 mph)

Wind survivability 200 km/h (125 mph)

Hardware

Networking interface (1) GbE RJ45 port

Power method Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply 24V, 0.5A gigabit PoE adapter (Included)

Supported voltage range 20-27V DC

Max. power consumption 8.5W

ESD/EMP protection Air/contact: ± 24 kV

LEDs (1) Power, (1) LAN, (4) WLAN

Signal strength LEDs Software-adjustable to correspond to custom RSSI levels

Salt fog test IEC 68-2-11 (ASTM B117)

Equivalent: MIL-STD-810 G method 509.5

Vibration test IEC 68-2-6

Temperature shock test IEC 68-2-14

UV test IEC 68-2-5 at 40° C (104° F)

Equivalent: ETS 300 019-1-4

Wind-driven rain test ETS 300 019-1-4

Equivalent: MIL-STD-810 G method 506.5

Ambient operating temperature -40 to 70° C (-40 to 158° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications FCC, IC, CE, RoHS

System

Gain 29 dBi

Max. VSWR 1.6:1

Channel sizes PtP Mode: 10/20/30/40/50/60/80 MHz

PtMP Mode: 10/20/30/40 MHz

Polarization Dual linear

Operating Frequency (Mhz)

Worldwide 5150 - 5875 MHz

USA

U-NII-1

U-NII-2A

U-NII-2C

U-NII-3

5150 – 5250 MHz

5250 – 5350 MHz

5470 – 5725 MHz

5725 – 5850 MHz
